UNO + Xbee + V5 Sensor Shield +1602 LCD Starter KitMarke: SainSmart Deutschland SKU: 101-51-C01
This is UNO + Xbee + V5 Sensor Shield +1602 LCD Starter Kit
- L293D is a monolithic integrated, high voltage, high current, 4-channel driver.
- XBee shield is designed to meet low-cost, low-power wireless sensor networks with special needs.
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins:6
DC Current per I/O Pin :40 mA
DC Current for 3.3V Pin :50 mA
Flash Memory :32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM :2 KB (ATmega328)
EEPROM :1 KB (ATmega328)
Clock Speed :16 MHz
SainSmart 1602 LCD Keypad Shield:
This is a 16x2 LCD Keypad module for Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board.
Blue Backlight with white words, adjustable backlighting.
4 Bit LCD Library
100% brand new and high quality
SainSmart Sensor Shield V5:
-- Ready to plug & play.
-- It can connect to various modules like sensors, servos, relays, buttons, potentiometers
-- Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.
SainSmart Xbee Shield:
The XBee shield (an Expansion Board without XBee module) is a compliant solution designed to meet low-cost, low-power wireless sensor networks with special needs. The module is easy to use, low power consumption, and the provision of critical data between devices reliable transmission. As the innovative design, XBee-PRO can be in the range 2-3 times beyond the standard ZigBee modules. XBee-PRO modules work in the ISM 2.4 GHz frequency band. The MaxStream's XBee (1 mW) Zigbee module is pin-compatible.
- Ranges 2-3 times beyond the standard ZigBee modules
- Easy to install
- Works with simple AT command
- Low power consumption
- Xbee 1mw
- Xbee Pro
- Xbee 2.5 series

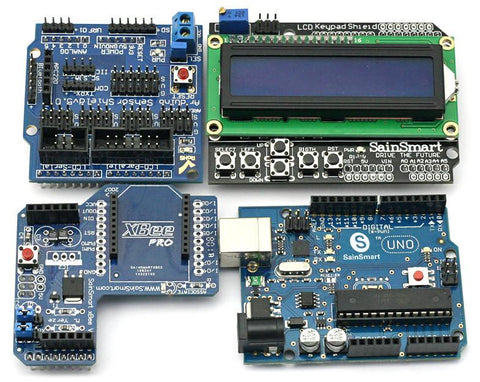

WHAT'S IN THE PACKAGE
- 1 x SainSmart UNO
- 1 x SainSmart 1602 LCD Keypad Shield
- 1 x SainSmart Sensor Shield V5
- 1 x SainSmart Xbee Shield
- 1 x USB Cable
