Brand: SainSmart

[discontinued] SainSmart Mega2560 R3+1602 LCD Keypad Shield Kit For ATMEL ATMEGA8U2 AVR

SKU: 101-52-C20
€33,99
Ups, 0 verfügbar.

SainSmart Mega2560 R3:

*1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Due for Arduino that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
*Stronger RESET circuit.
*Atmega 16U2 replace the 8U2

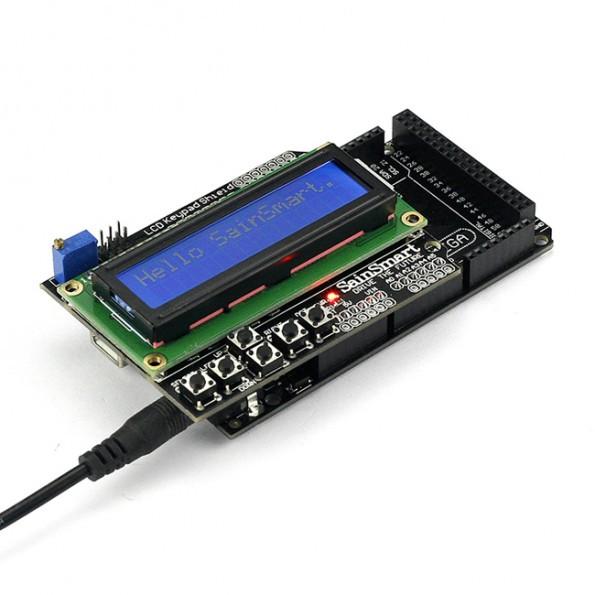

SainSmart 1602 LCD Keypad Shield:

    *This is a 16x2 LCD Keypad module for  Diecimila Duemilanove, UNO, MEGA1280, MEGA2560  board.
    *Blue Backlight with white words, adjustable backlighting.
    *4 Bit  LCD Library
    *100% brand new and high quality

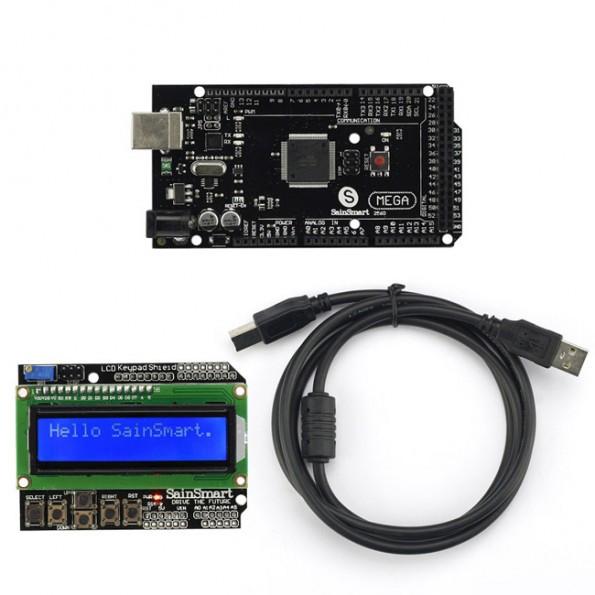

    Package List:
    1x SainSmart Mega2560
    1x SainSmart 1602 LCD Keypad Shield



    Buy Separately:

    SainSmart Mega2560

    SainSmart LCD Keypad Shield
