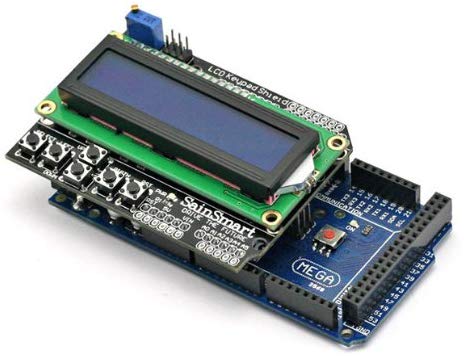

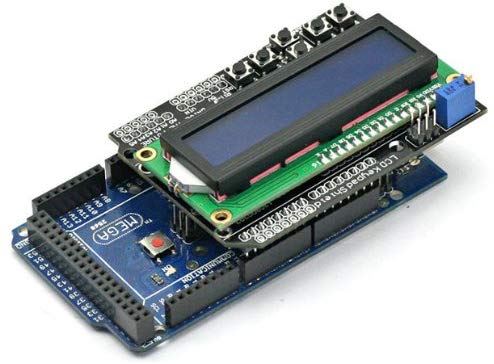

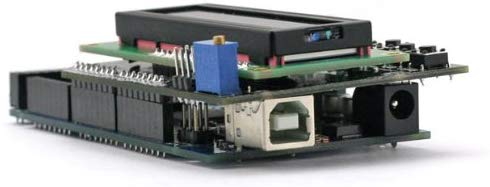

[discontinued] SainSmart MEGA ATmega2560 + LCD Tastenfeld Shield Kit

[discontinued] SainSmart MEGA ATmega2560 + LCD Tastenfeld Shield Kit

SKU:  20-011-C02
Regular price €6,99
-Liquid error (snippets/price line 160): divided by 0 Regular price Sale price €6,99
Shipping calculated at checkout.
  • 20-011-C02
View full details

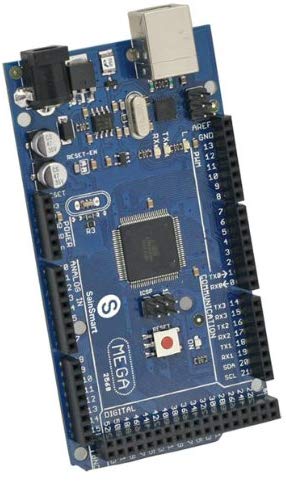

The SainSmart MEGA 2560 Board is a microcontroller board based on the ATmega2560.

It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

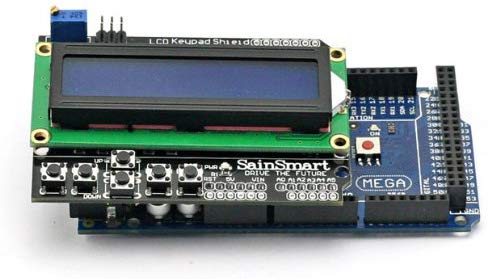

The SainSmart LCD Keypad Shield includes a 16x2 HD44780 White on Blue LCD module and a 5 push button keypad for menu selection and user interface programming.

Fully assembled. On-line Arduino tutorial and example code. Compatible with Arduino Uno, Mega, Duemilanove. Uses digital pins 4 - 10, and analog pin 0.

NOTE: Please download here for the documentation.
https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-901/LCD1602.rar
https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-901/LCDkeypad1.0.rar
