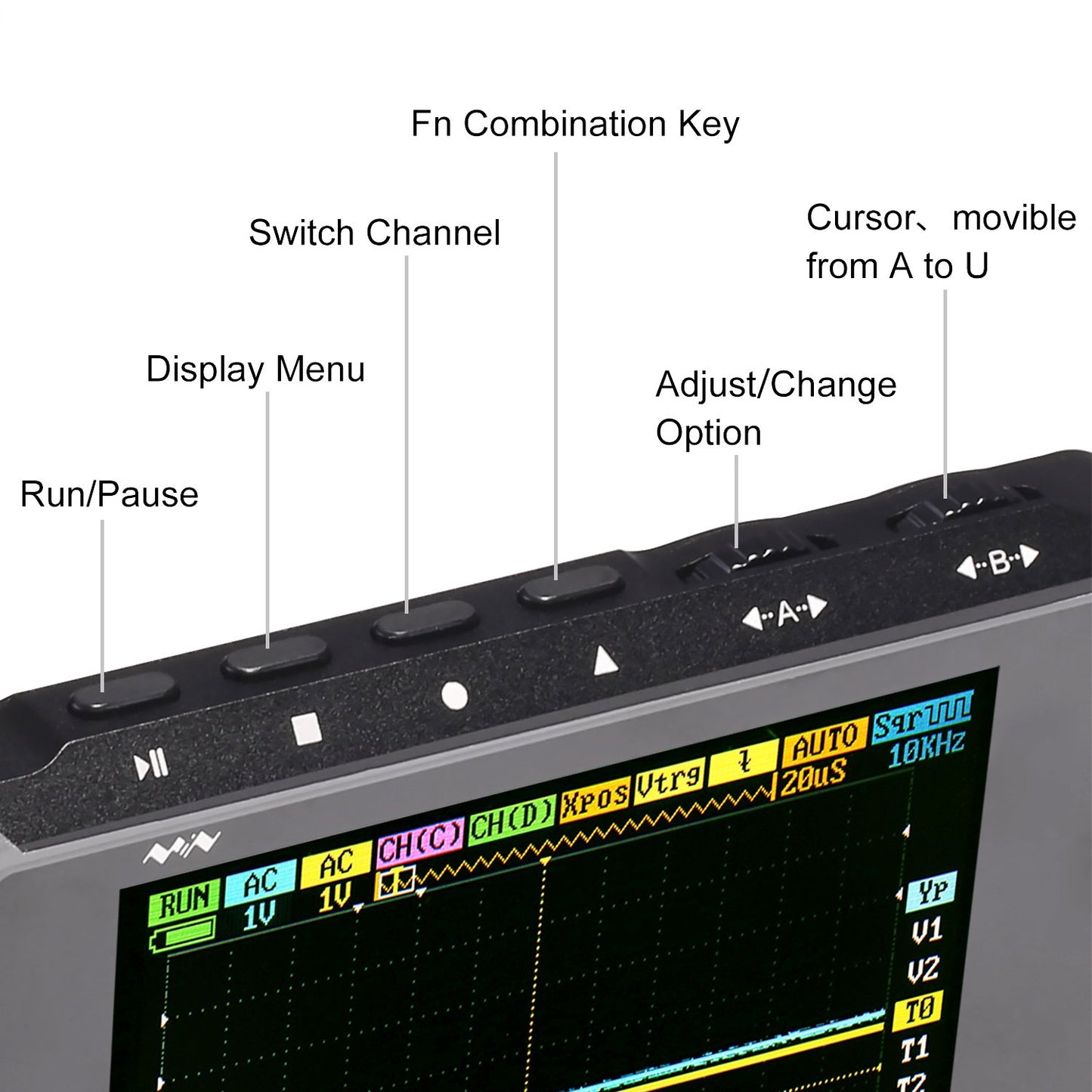

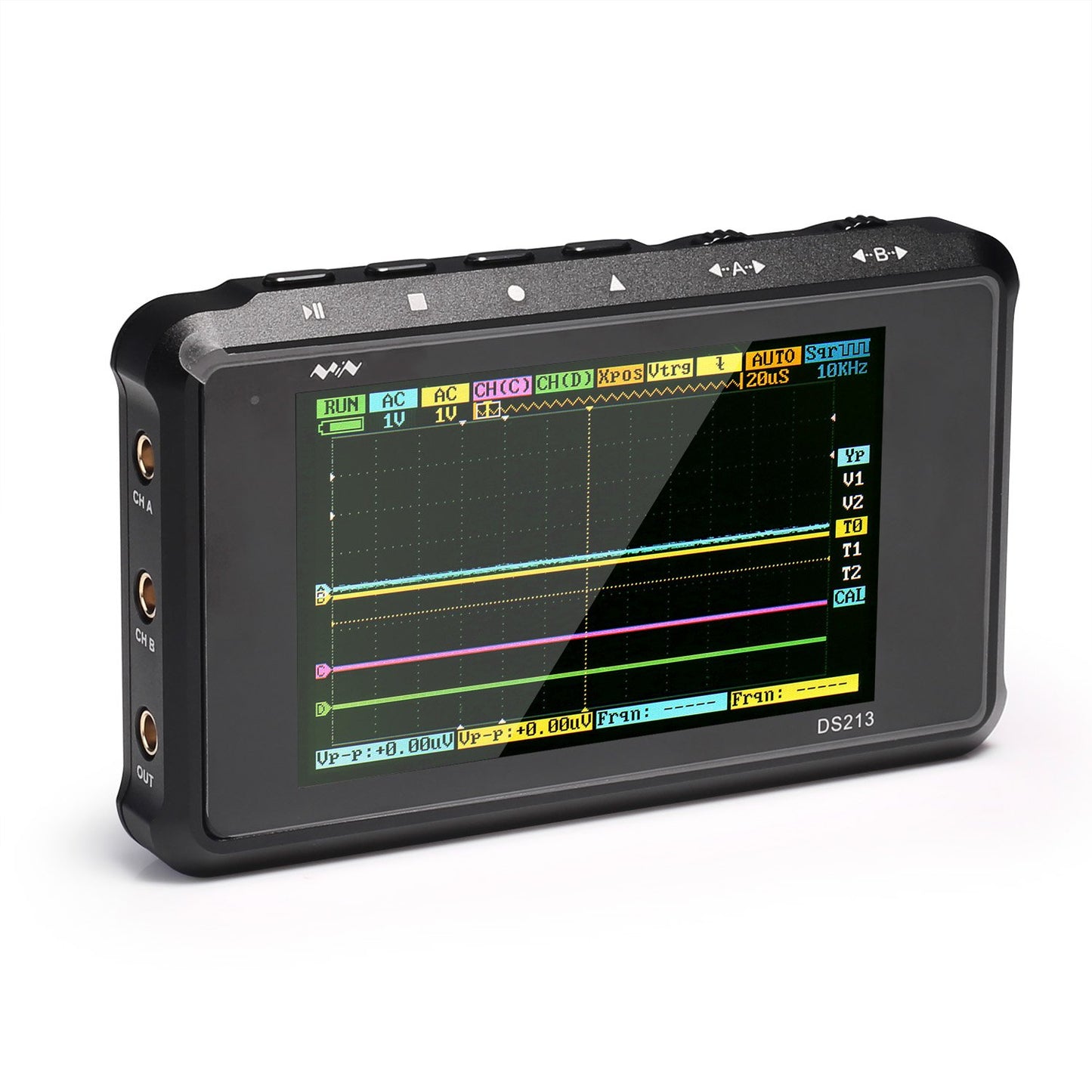

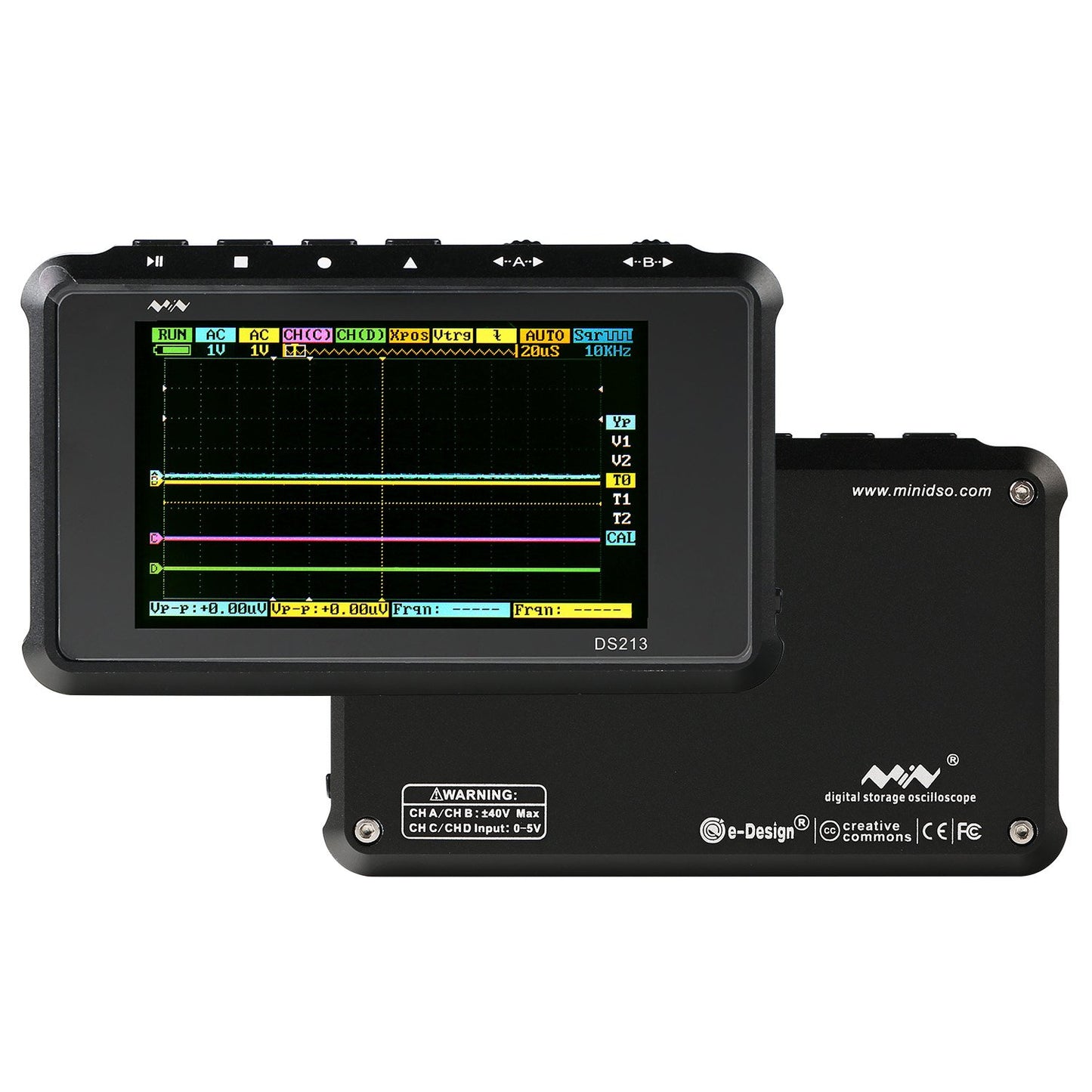

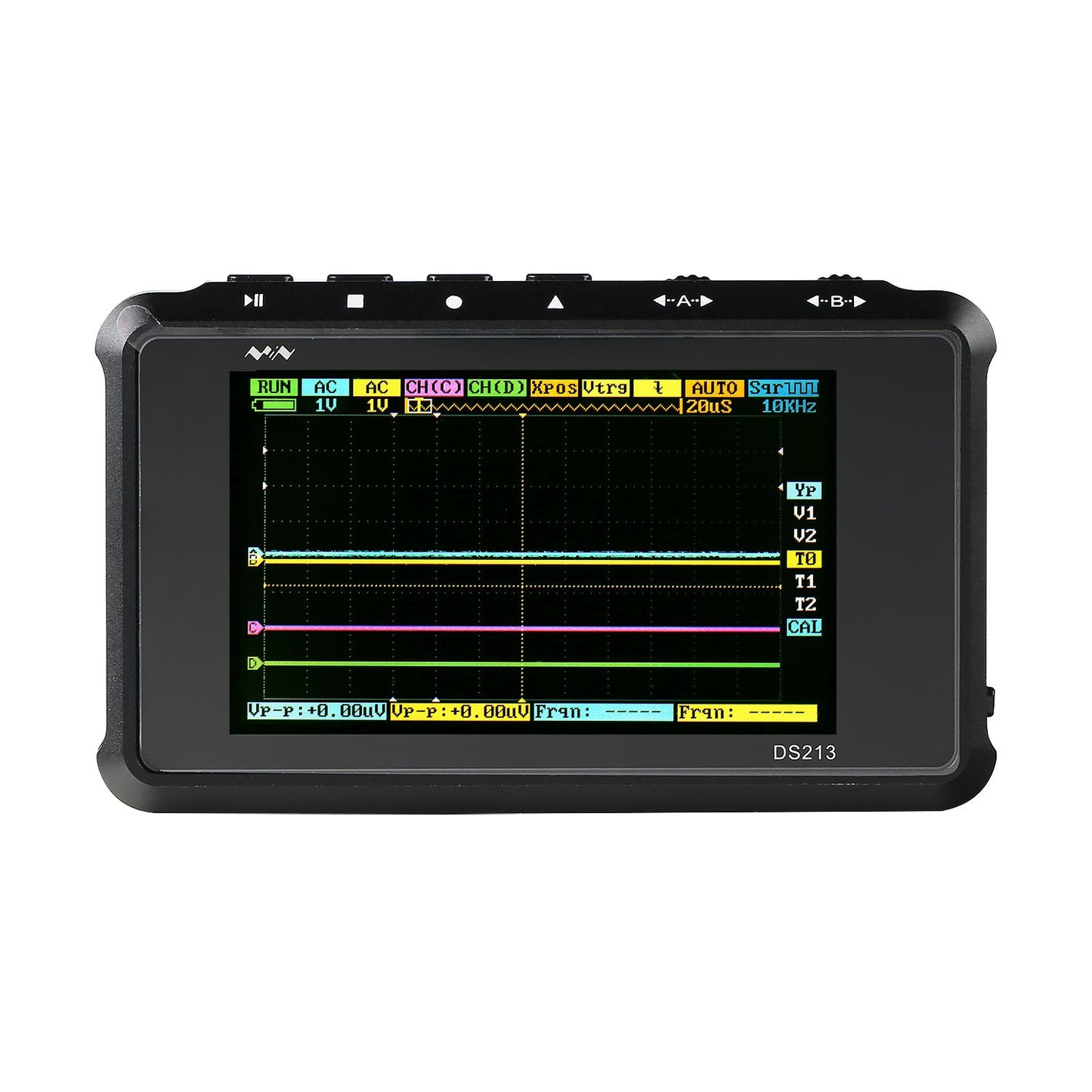

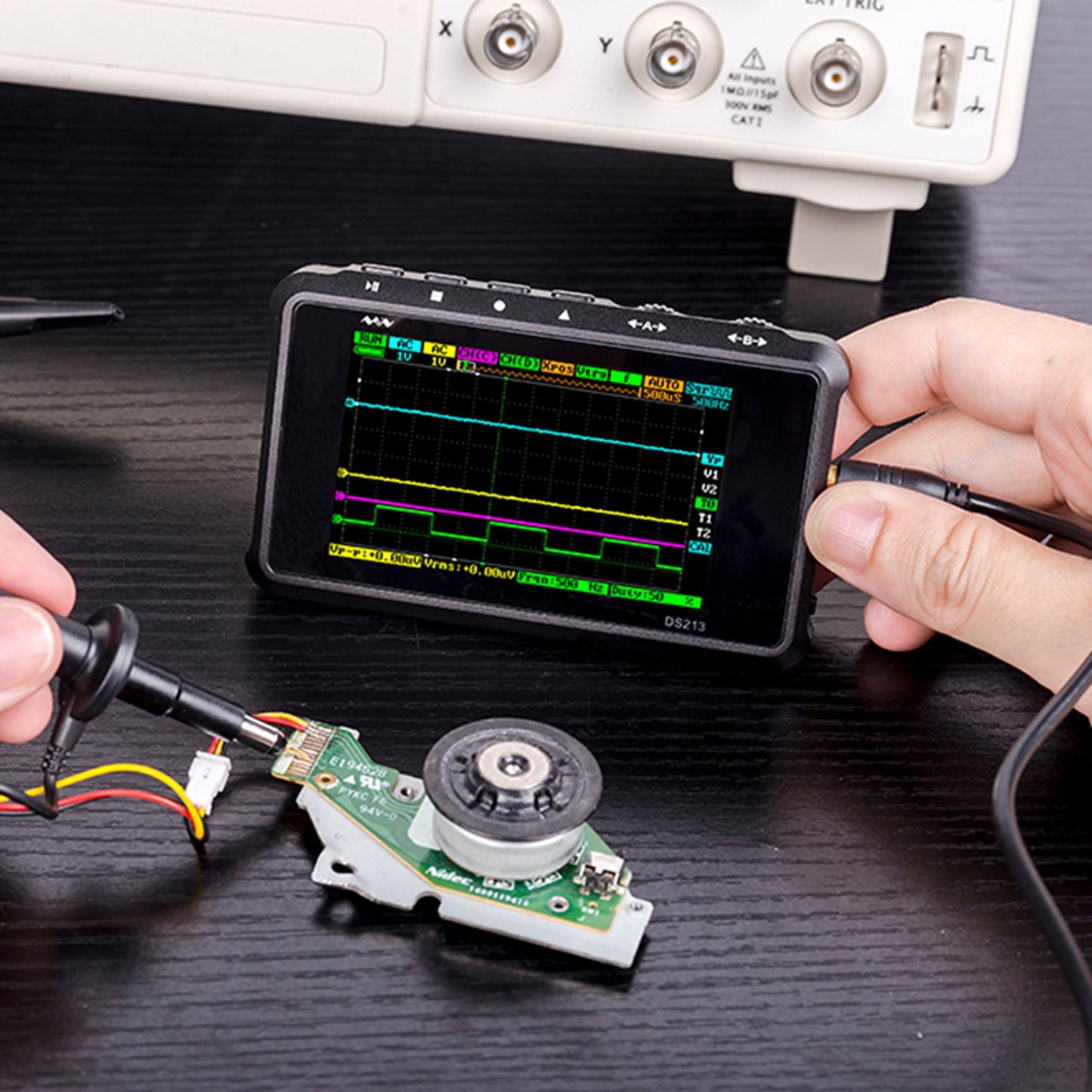

Specification: DSO213
- Model: DSO213
- MCU: STM32F103VC

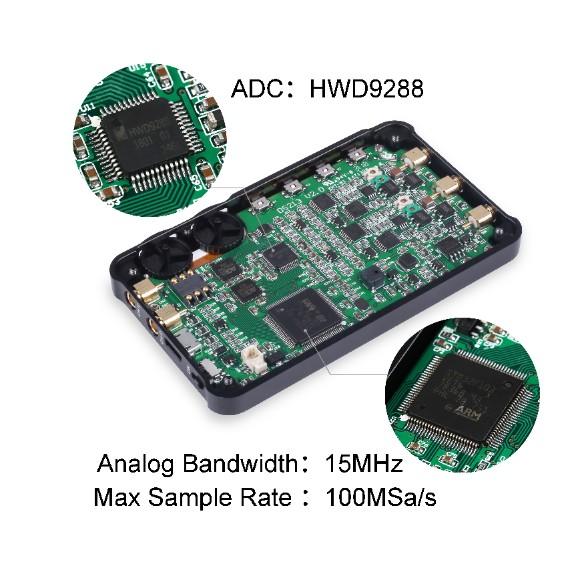

- ADC: HWD9288

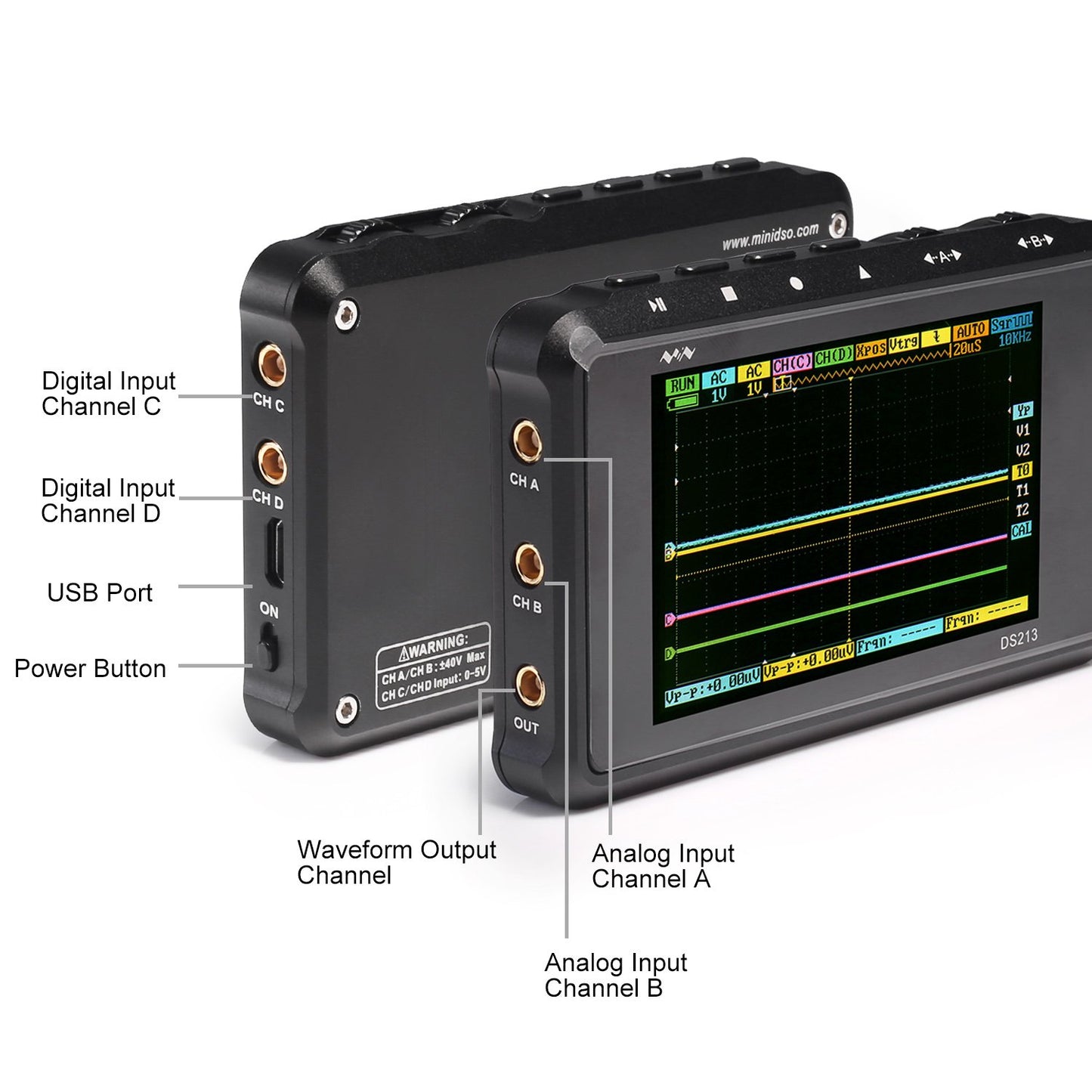

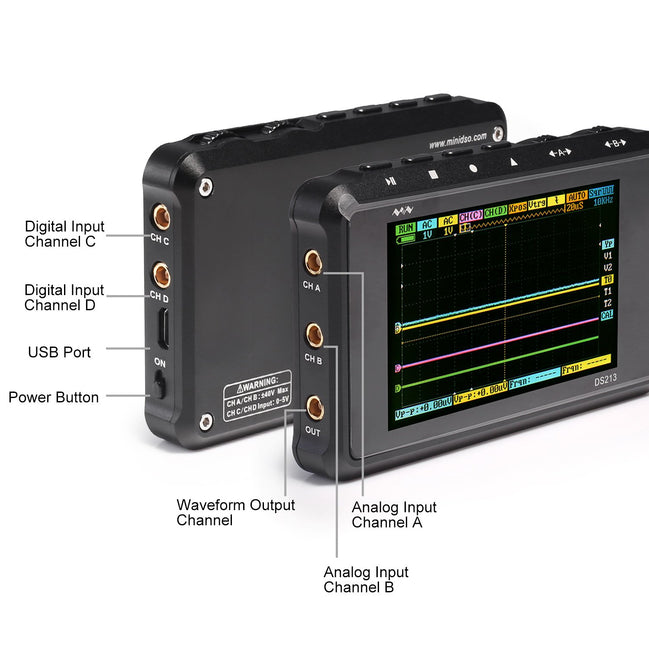

- Channels: 2 Analog Channels + 2 Digital Channels
- Analog Bandwidth: 15MHz
- Max Sample Rate: 100MSa/s
- Max Sample Depth: 4K
- Horizontal Sensitivity: 100ns/Div ~ 1s/Div (1-2-5 Sequence Step)
- Vertical Sensitivity: 10mV/Div ~ 10V/Div (1-2-5 Sequence Step)
- Analog Input Impedance: 1MΩ
- Coupling: DC / AC
- Memory: 8MB USB Flash Disk Storage
- USB Interface: Micro USB
- Battery: 1000mAh

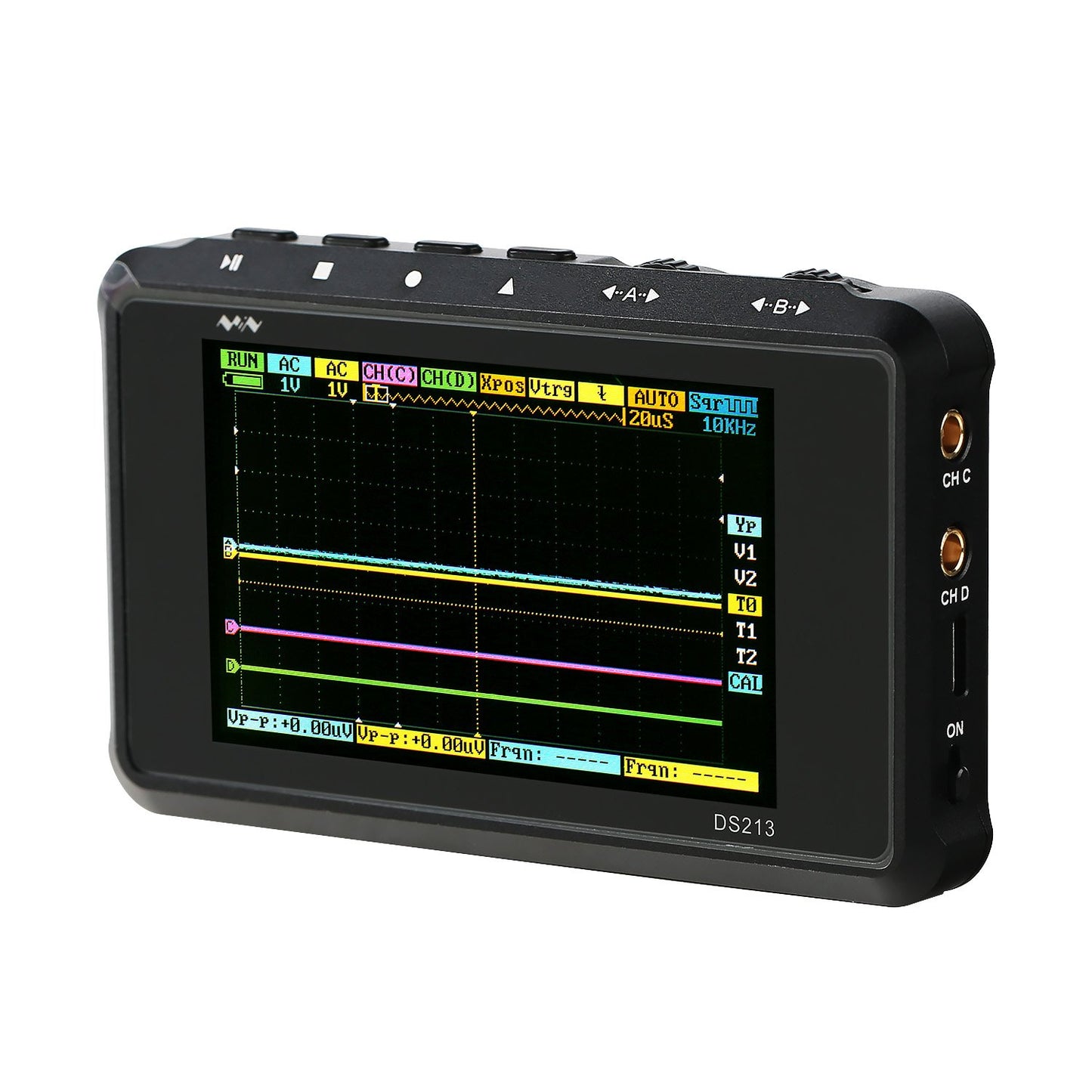

- Screen Size: 3.0 inches
- Screen Resolution: 400 x 240

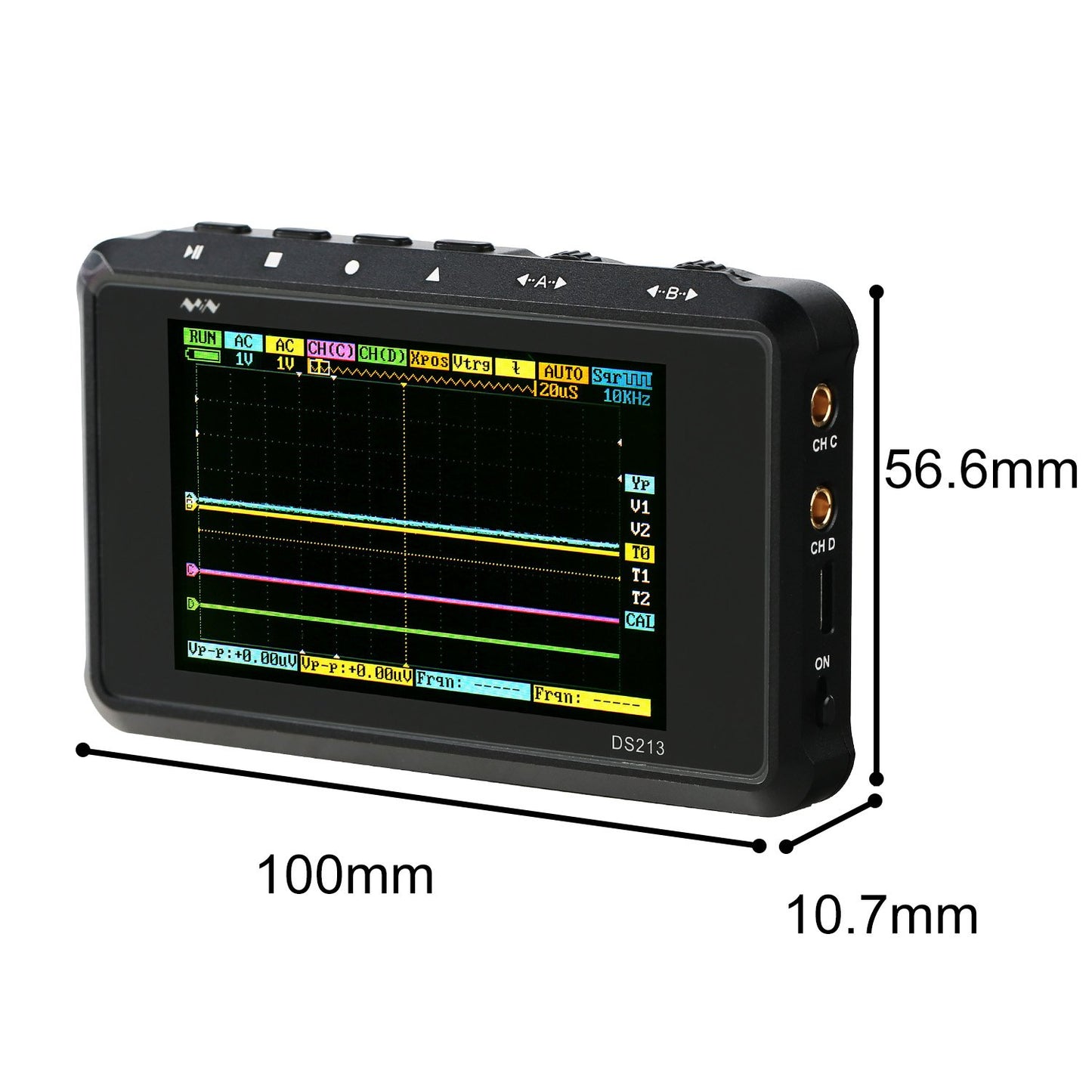

- Dimensions: 99 x 59 x 13 mm
- Weight (with Battery): 129g
- Open Source: Application Layer Open-Source
- Certifications: CE / FCC
Included in the Package:

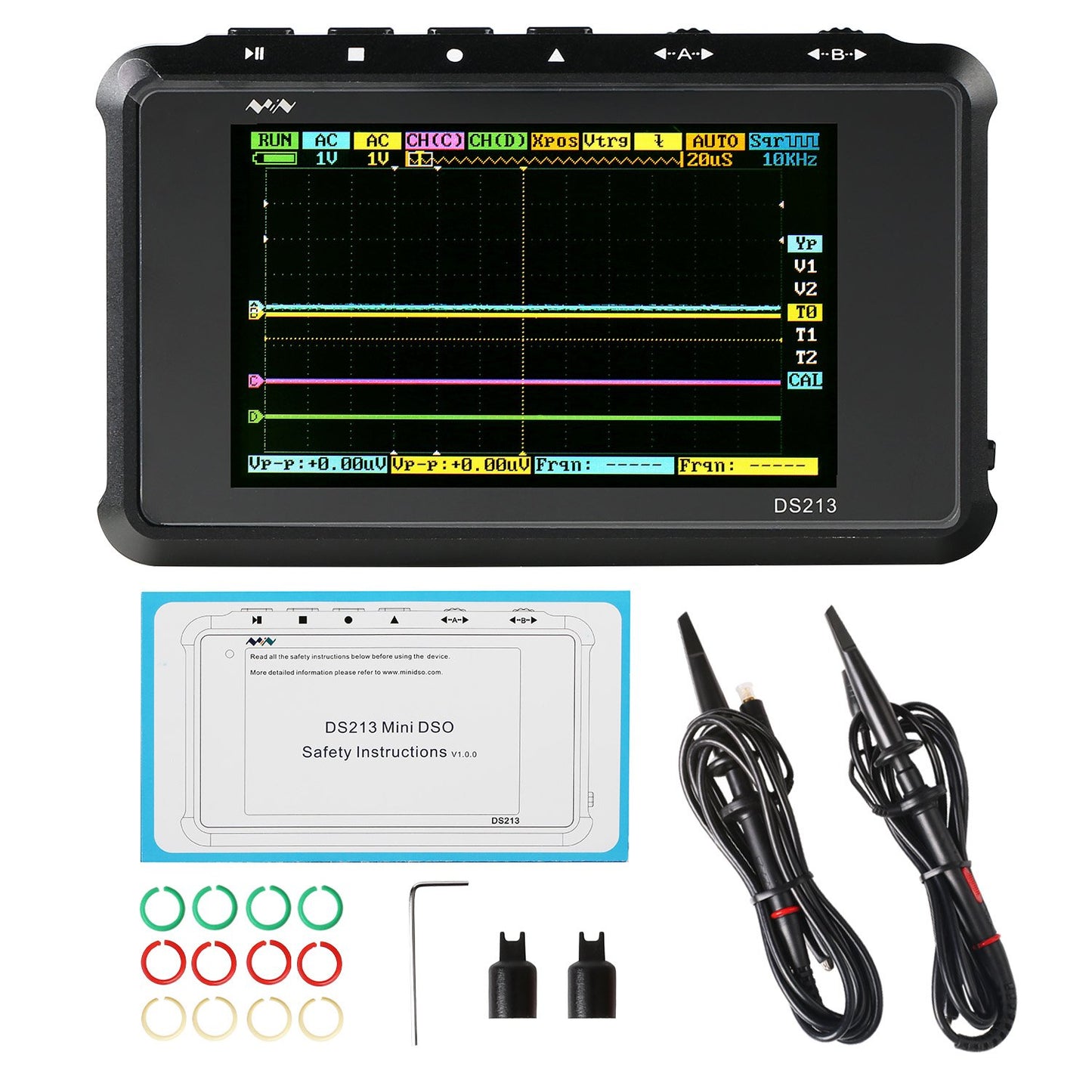

- 1 x SainSmart DSO213 with Battery
- 2 x MCX Oscilloscope Probes
Manual:
Comparison: DSO213 vs DSO203
| Feature | DSO213 | DSO203 |
|---|---|---|
| MCU | STM32F103VE | STM32F103VE |
| ADC | HWD9288 | AD9288 |
| Channels | 2 Analog, 2 Digital | 2 Analog, 2 Digital |
| Analog Bandwidth | 15MHz | 8MHz |
| Max Sample Rate | 100MSa/s | 72MSa/s |
| Max Memory Depth | 4K | 4K |
| Horizontal Sensitivity | 100ns/Div ~ 1s/Div | 0.1µs/Div ~ 1s/Div |
| Vertical Sensitivity | 10mV/Div ~ 10V/Div | 50mV/Div ~ 10V/Div |
| Input Resistance | 1MΩ | 1MΩ |
| Coupling | DC / AC | DC / AC |
| Auto Adjustment Mode | No | No |
| Calculation Waveforms | -A, -B, A+B, A-B, RecA, RecB, RecC | -A, -B, A+B, A-B, RecA, RecB, RecC |
| Storage | 8MB USB Flash Disk Memory | 8MB USB Flash Disk Memory |
| APP Installed | 2 | 4 |
| Operation | Buttons, Scrollers | Buttons, Scrollers |
| USB Interface | Micro USB | Mini USB |
| Battery | 1000mAh | 1000mAh |
| Screen Size | 3.0 inches | 3.0 inches |
| Screen Resolution | 400 x 240 | 400 x 240 |
| Open Source | Application Layer Open-Source | Application Layer Open-Source |
