Brand: SainSmart

[discontinued] SainSmart 1000W ZVS Low Voltage Induction Heating Board Module

SKU: 101-30-234
€27,00 €47,99 Save €20,99
Ups, 0 verfügbar.

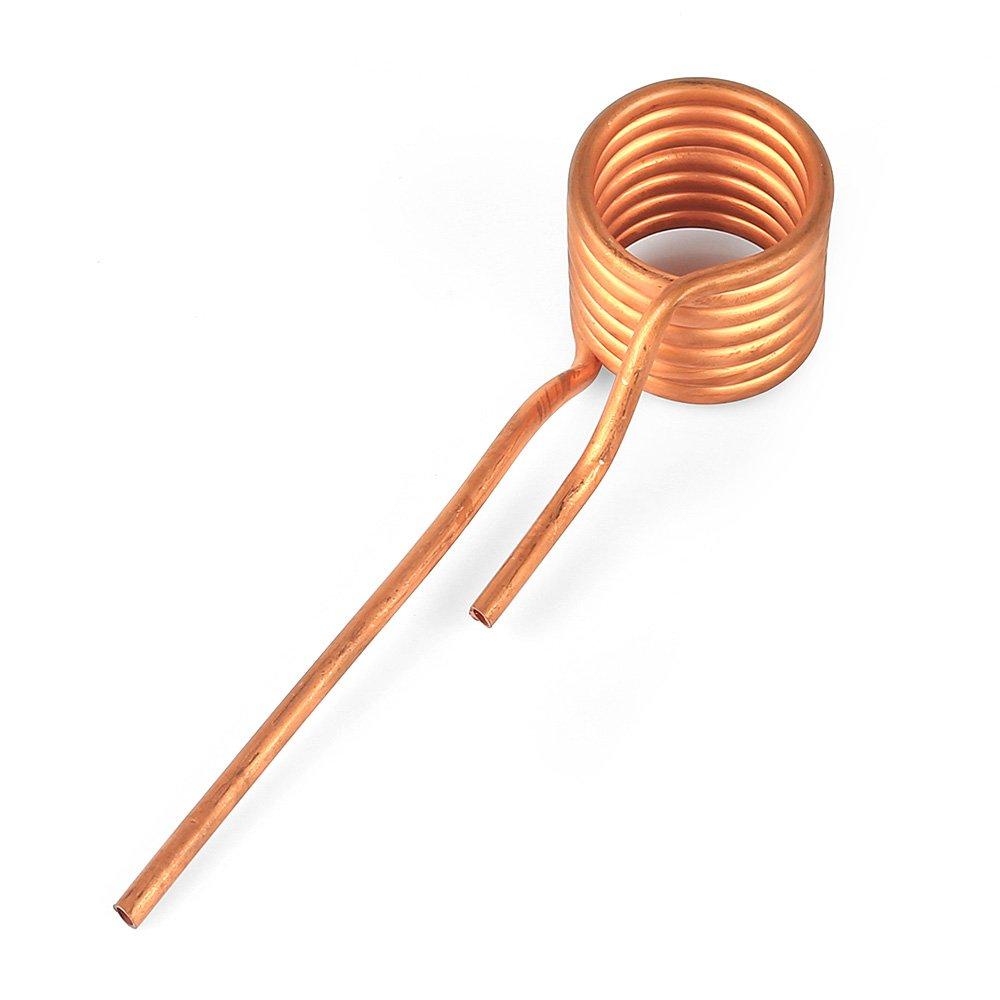

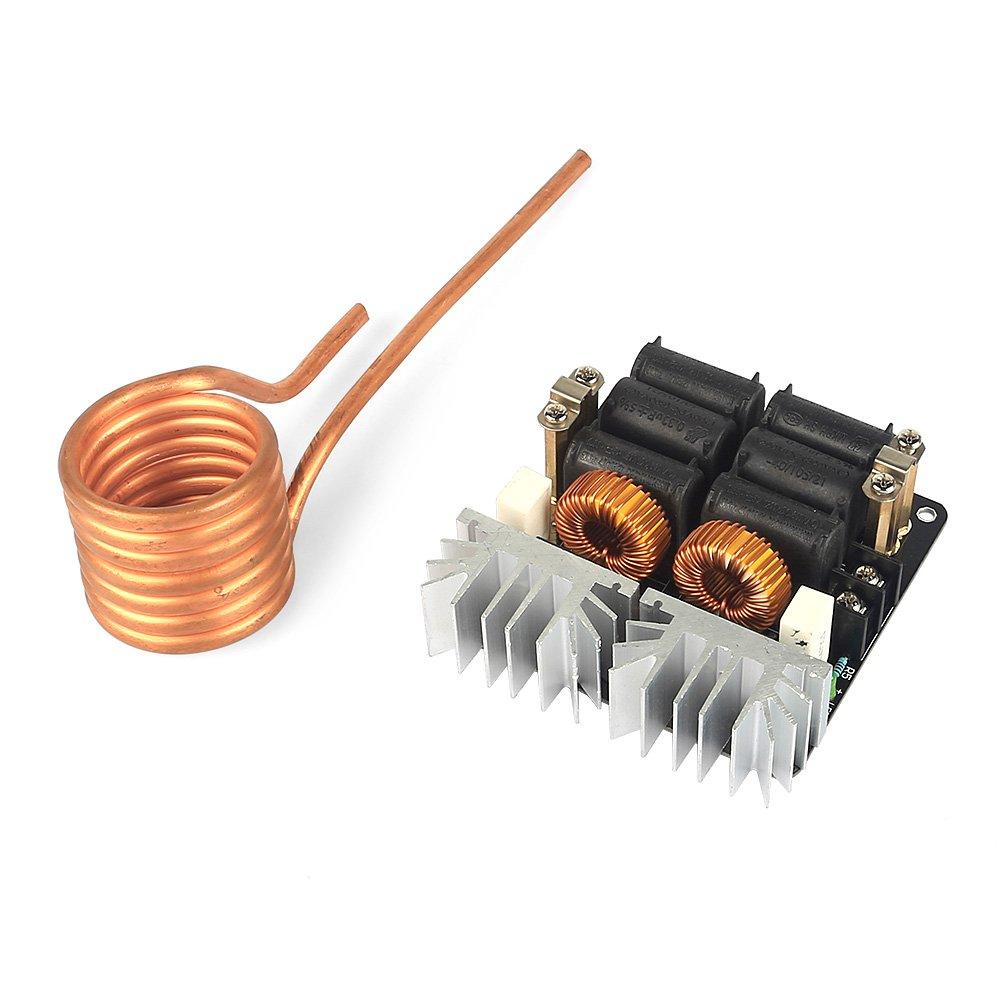

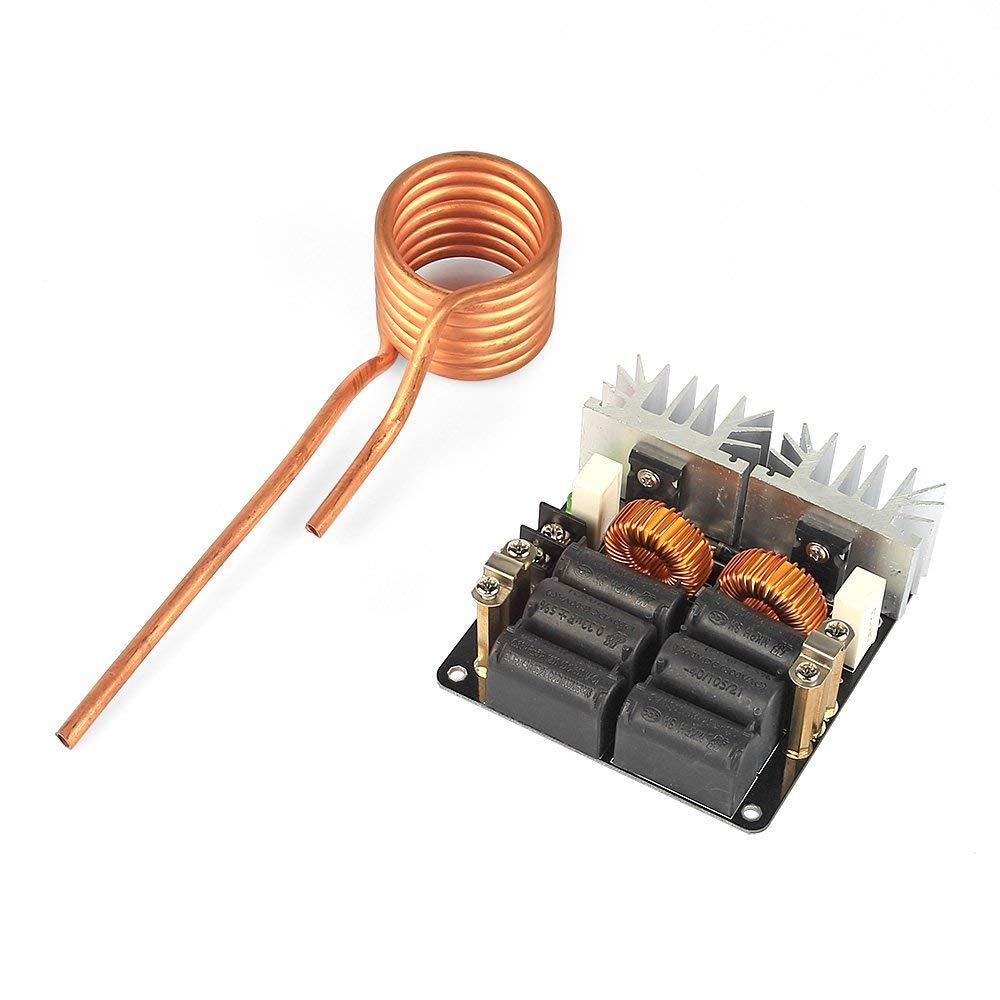

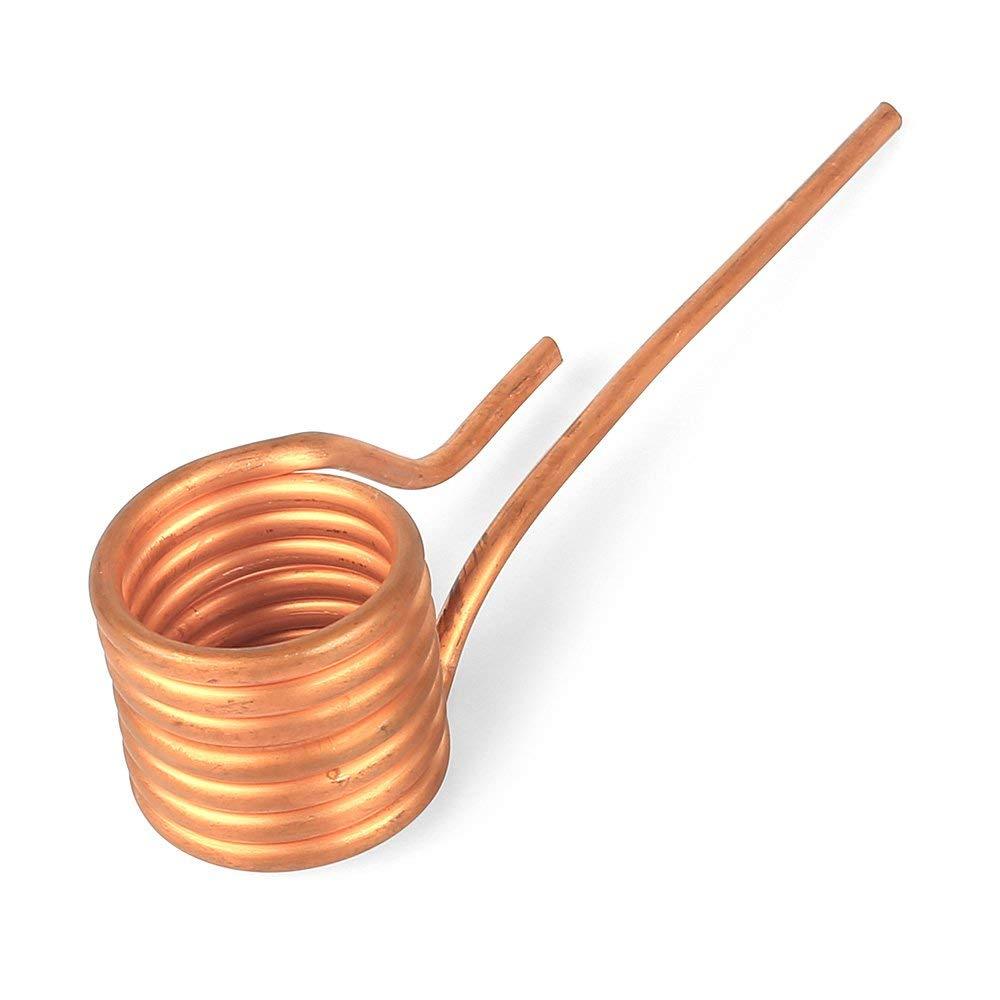

The kit contains a full set of driving circuit elements and brass.


   ● We tested when it works 53V power supply, current can reach 20A.It can be used for DIY players to make small parts quenching, annealing and other heat treatment, heating fast, very convenient.

   ● When made with switch power supply, because of the high power generally has function of soft start, namely just powered on the output voltage is slowly rising, while if before the voltage up to 12v connected induction heating circuit, will not work and burn MOS tube. So voltage reaches more than 12 v connected induction heating circuit.

   ● The volume of heated objects cannot be more than 1/10 of the heating coil internal volume (that is, the heating cylinder diameter more than 1/3 heating coil diameter), otherwise it may because of overload and burned circuit or the power supply. Although this circuit can tolerate 30A input current, but the insurance for the purpose of work not more than 20A.

Pack List:

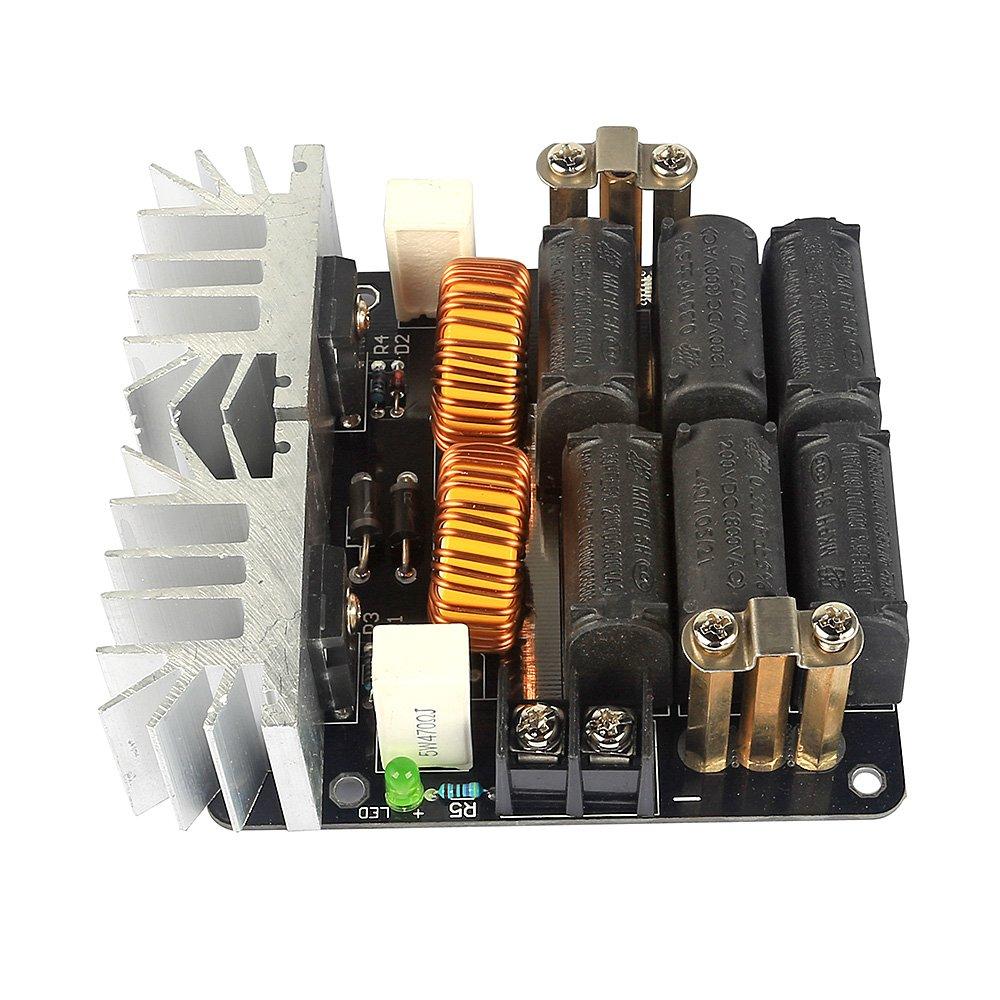

1 x ZVS Low Voltage Induction Heating Board


Buyer need self-provided power and water cooling device.
