Brand: SainSmart

[discontinued] DSO062 Mini Digital Oscilloscope 1MHz Analog Bandwidth 20MSa/s DIY Kit

SKU: 101-10-106
€38,99
Ups, 0 verfügbar.
DESCRIPTION

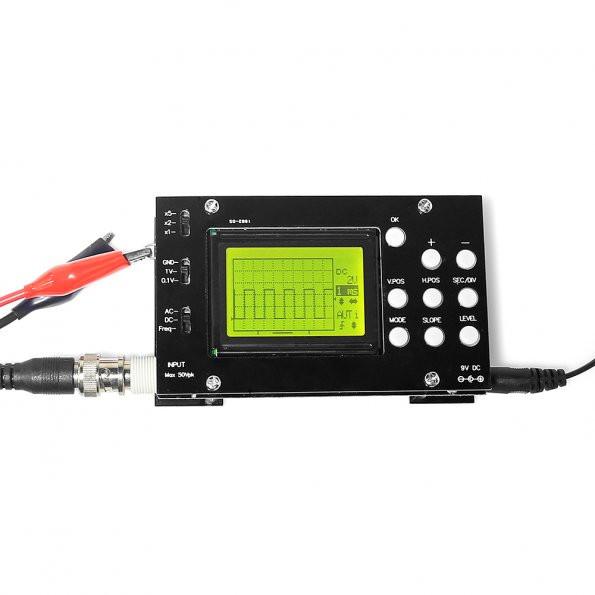

This kit includes everything you need to build your very own, fully functional, digital oscilloscope. Once you've got it up and running, the oscilloscope features up to 5M samples/second, 8-bit resolution, up to 50Vpp max input voltage, and more!

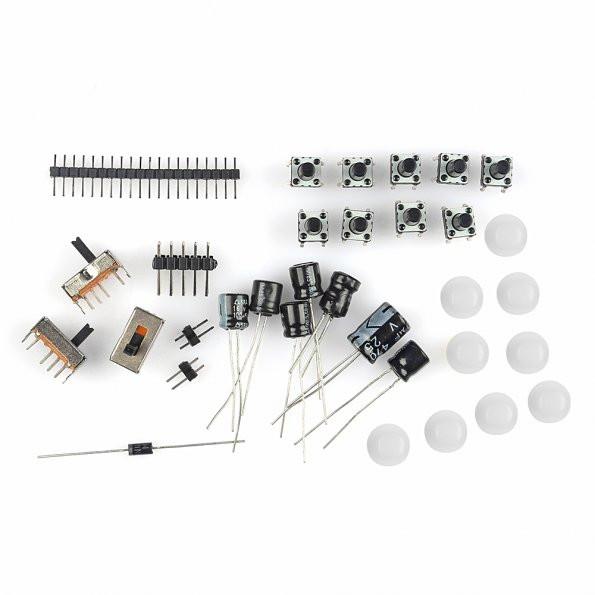

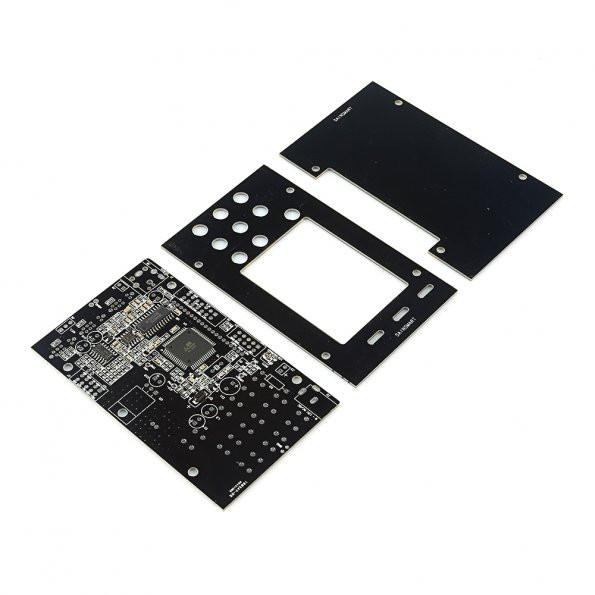

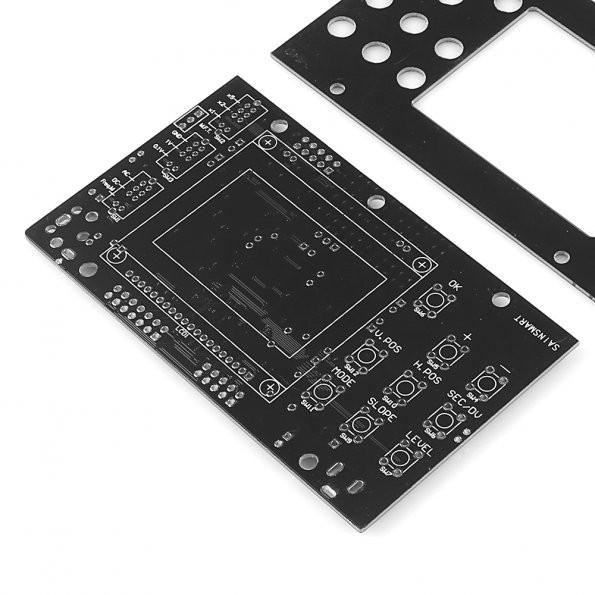

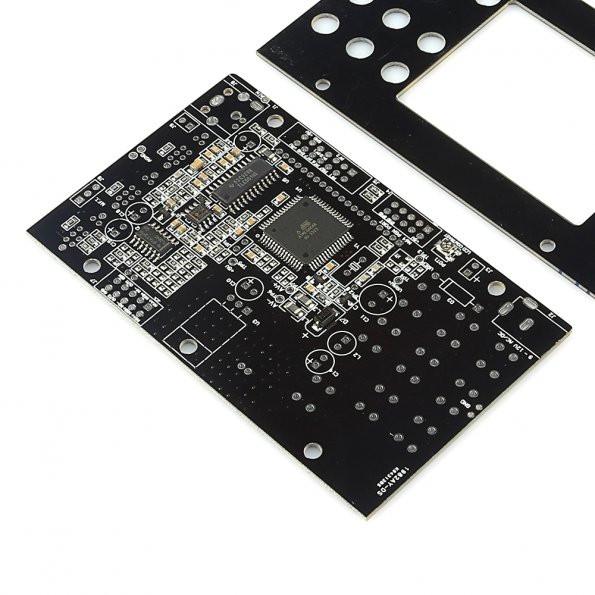

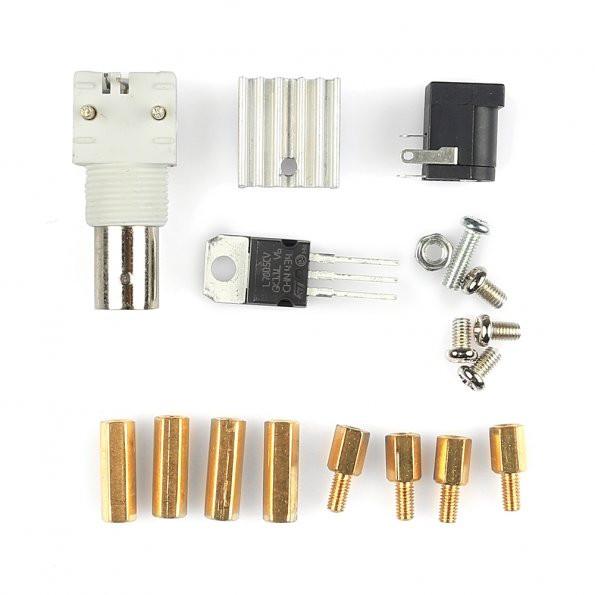

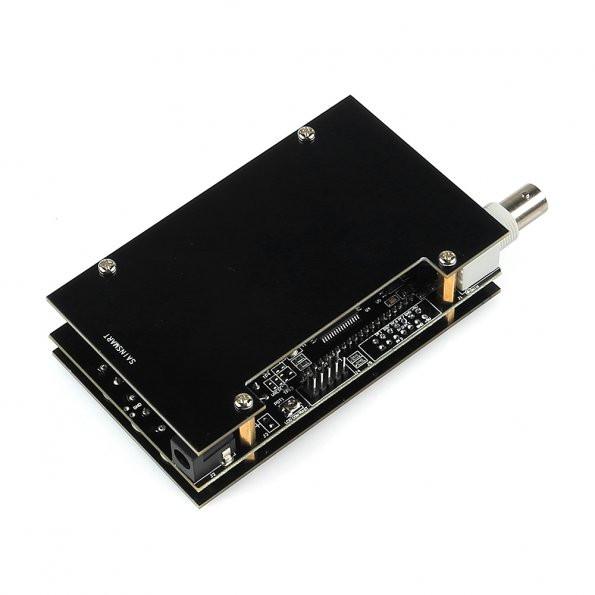

This kit includes a semi-populated PCB, with all of the surface mount components already soldered on for you. The components left for you to solder are all through-hole. This is on the higher end of difficulty as far as through-hole kits go.



SPECIFICATION
  • Maximum equivalent-time sampling rate (repetitive signal) - 20MSa/s
  • Maximum real-time sampling rate - 2MSa/s
  • Resolution - 8 bits
  • Record length - 256 bytes
  • Analog bandwidth - 1MHz
  • Vertical sensitivity - 100mV/Div - 5V/Div
  • Vertical position adjustable with indicator
  • Input impedance - 1M ohm
  • Max input voltage - 50Vpk (1x probe) [500Vpk for 10x probe]
  • DC/AC/GND coupling
  • Horizontal - 0.5us/Div - 10m(minute)/Div
  • Auto/Normal/Single trig modes
  • Rising/Falling edge trigger
  • External trig available
  • Trigger output is available, which makes it possible to cascade scopes to do multi-channel capture.
  • Trigger level adjustable with indicator
  • Hold/run feature
  • Save/recall up to 6 captures
  • FFT function available - size of 256 points and 512 points selectable, sampling rate of 1Ksps to 2Msps selectable
  • Transfer screen to PC as bitmap file via serial connection
  • Built-in 500Hz/5Vpp test signal
  • Frequency Meter (For TTL level input signal)
  • Auto switching between Oscilloscope Mode and Frequency Meter Mode
  • 9V DC power supply
  • Dimension: 110mm X 65mm X 25mm (without case)
  • Weight: 125 gram (not including probe and power adapter)

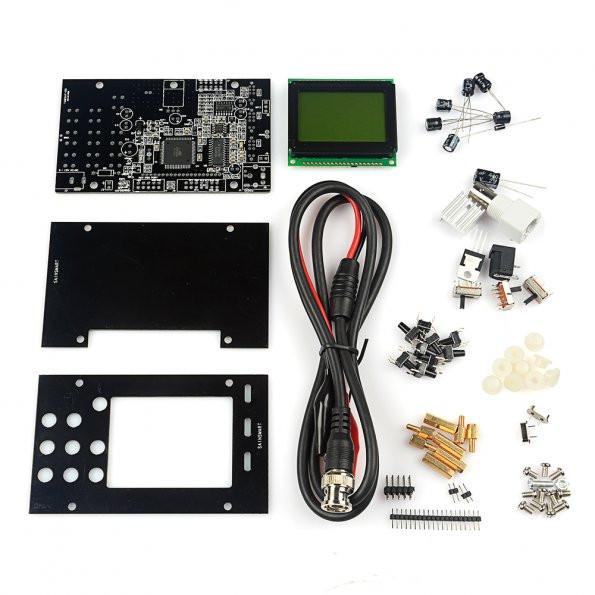

WHAT'S IN THE PACKAGE

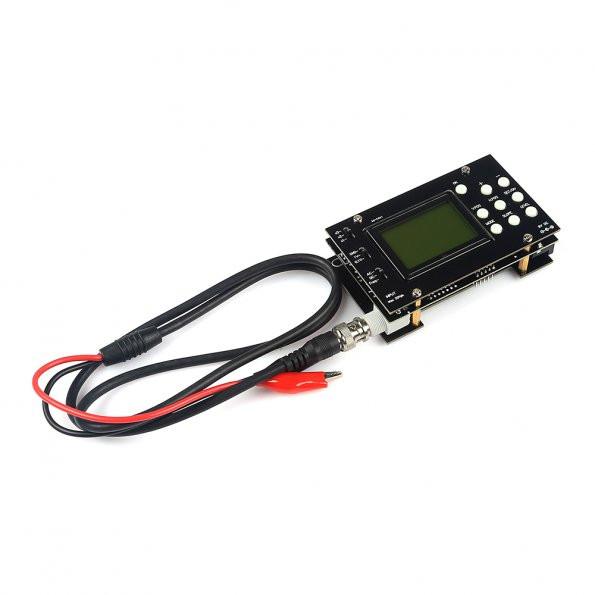

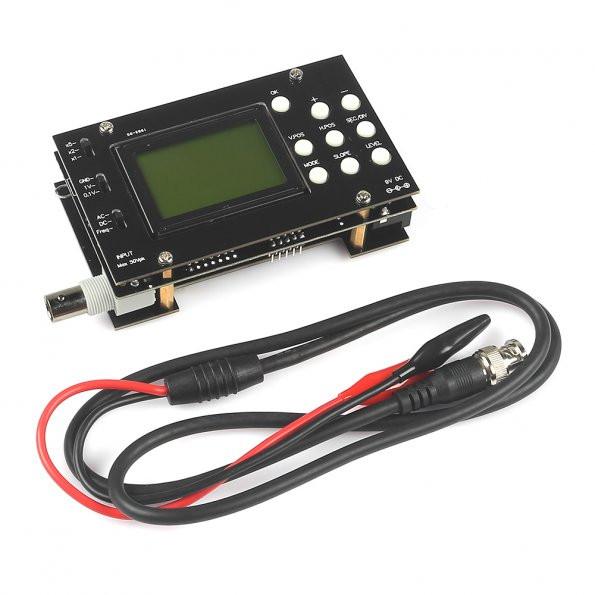

  • 1x SainSmart DSO062 1MHz Analog Bandwidth 20MSa/s Oscilloscope DIY Kits
  • 1x Probe


The item is DIY kits NOT SOLDERED. Very easy to solder. Thanks.



Documents Download Links:
