Brand: SainSmart

HC100A Digital Humidity Controller

SKU: 101-70-200
€39,99
Ups, 0 verfügbar.

This is SainSmart HC100A Digital Humidity Controller humidistat, AC110V-240V, 1 Relay with Sensor, LCD Colour Display

  • High humidity start - Desiccant mode
  • Low humidity start- Moisture model
  • Humidity correction mode
  • Set alarm mode
  • Countdown function
SPECIFICATION
  • Humidity measurement range: 0%RH~99.9%RH
  • Resolution: Humidity 0.1%RH, temperature 0.1℃
  • Measurement accuracy: + 0.1%RH
  • Control precision: 0.1%RH
  • Refresh rate: 1S
  • Input voltage: DC12V/24V (select)

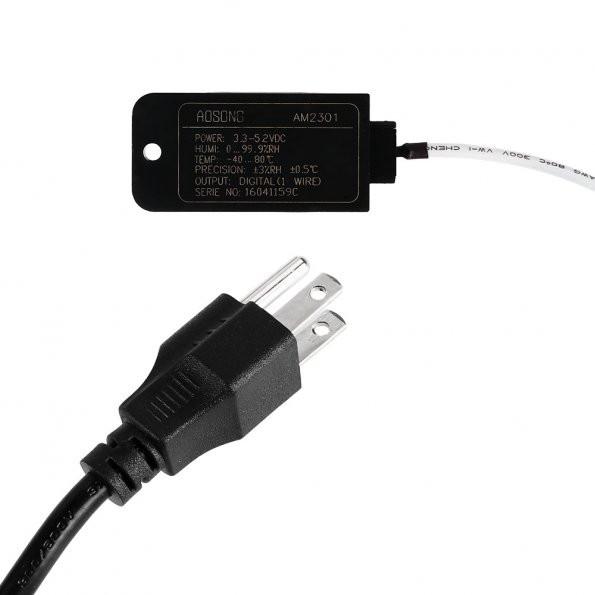

  • Measurement input: AM2301 temperature and humidity integrated sensor
  • Output: all the way 10A relay
  • Environmental requirements: -10--60  humidity 20%--85%
  • Specification size: 78mm (long) *75mm (wide)
  • Overall power consumption: Quiescent current≤20MA   Pull currentv≤50MA

INSTRUCTION

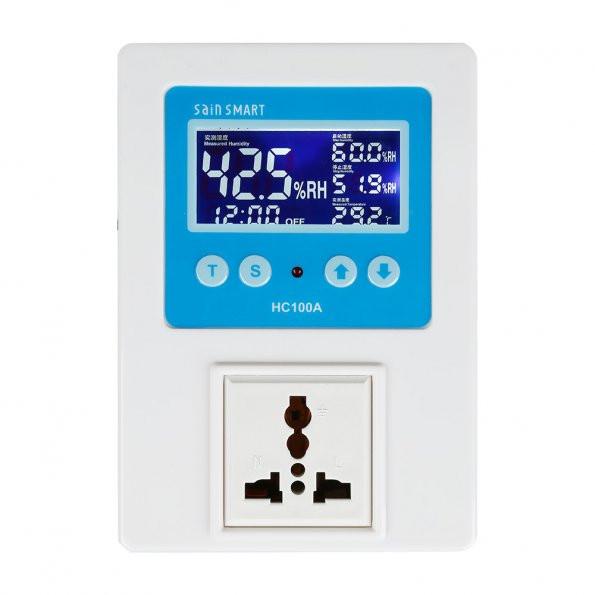

  • 1.At the same time,the screen shows the measured humidity, starting humidity, stop humidity.Can be displayed in
  • Chinese and English, with humidity correction function.
  • 2.The current humidity can be displayed in real time.
  • 3.Have timing function, The maximum timing is 99 hours and 59 minutes.
  • 4.With over limit alarm function.

Indicator light:
Equipment began to work when the middle of the red indicator is turn on.
Key note:

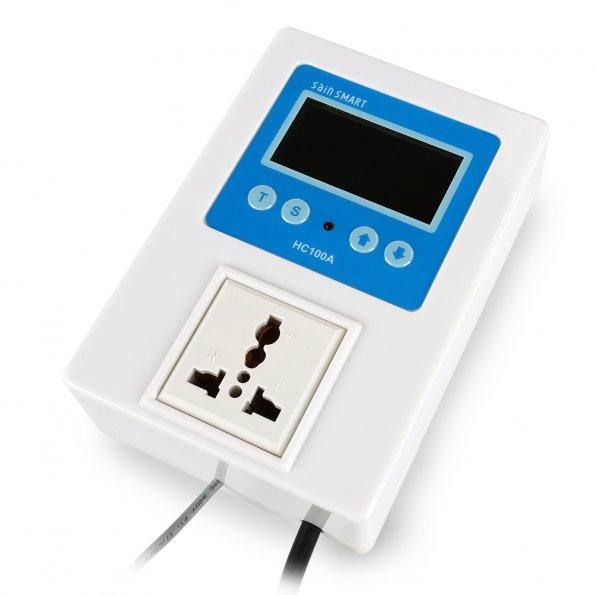

Look at the picture 1, Buttons from left to right respectively is T, S, +, -.



FEATURE
  • High humidity start - Desiccant mode
  • Low humidity start- Moisture model
  • Humidity correction mode
  • Set alarm mode
  • Countdown function
WHAT'S IN THE PACKAGE

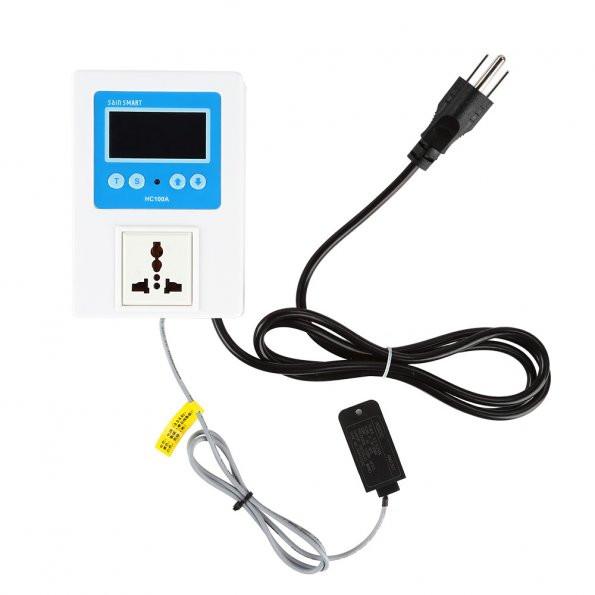

  • 1 x SainSmart HC100A AC 110V-240V Digital Humidity Controller

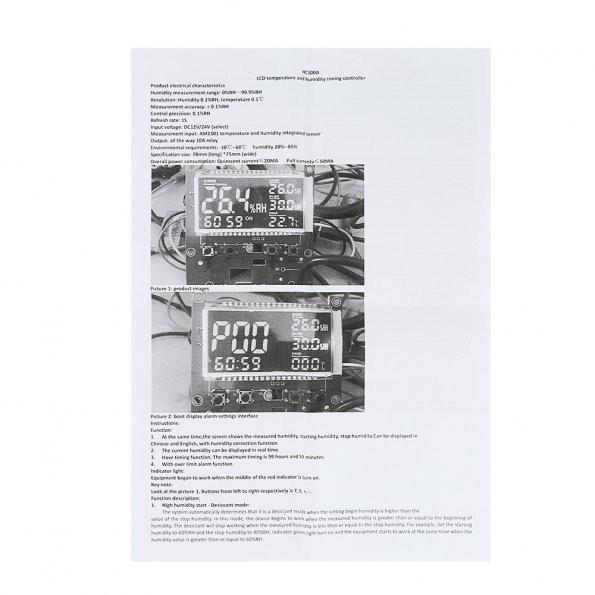

  • 1 x English manual
