[discontinued] Automatic EA05A Voltage Regulator Controller For KUTAI AVR
Brand: SainSmart

[discontinued] Automatic EA05A Voltage Regulator Controller For KUTAI AVR

SKU: 101-92-204
€58,99 FREE SHIPPING
Ups, 0 verfügbar.

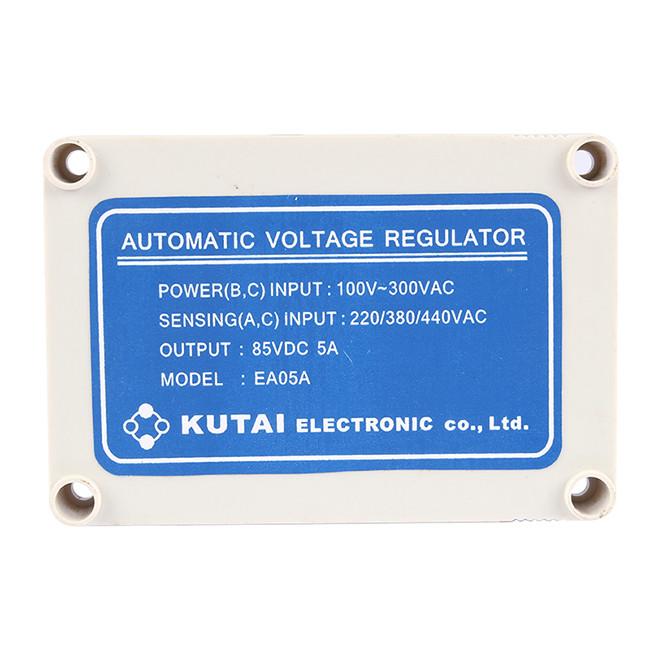

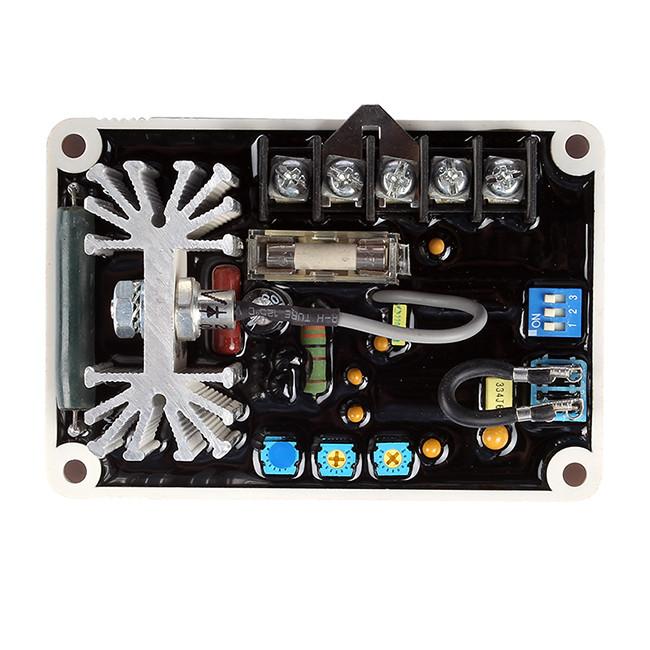

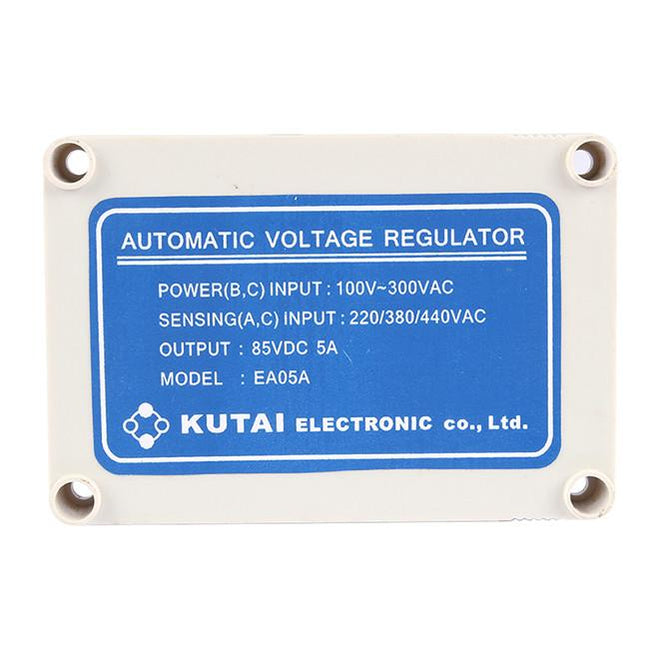

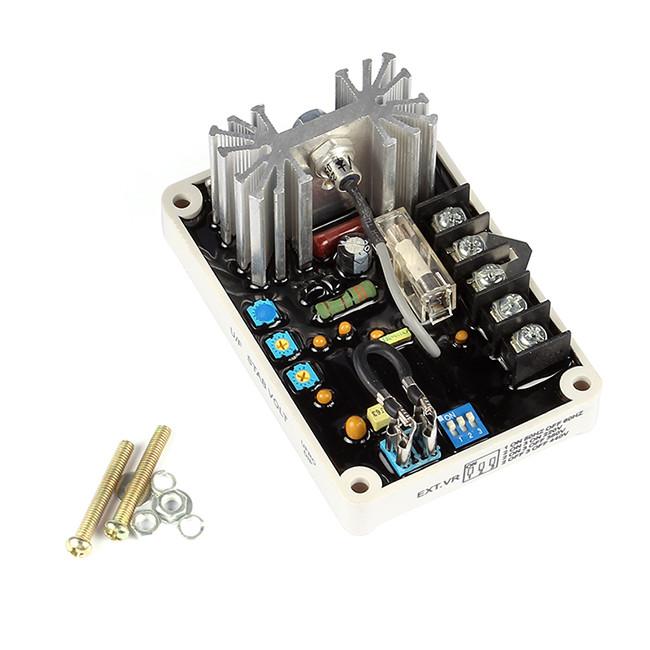

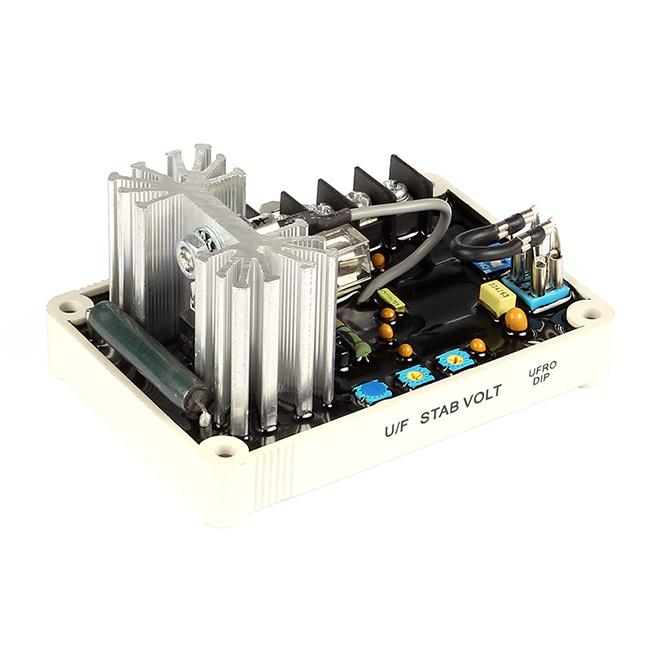

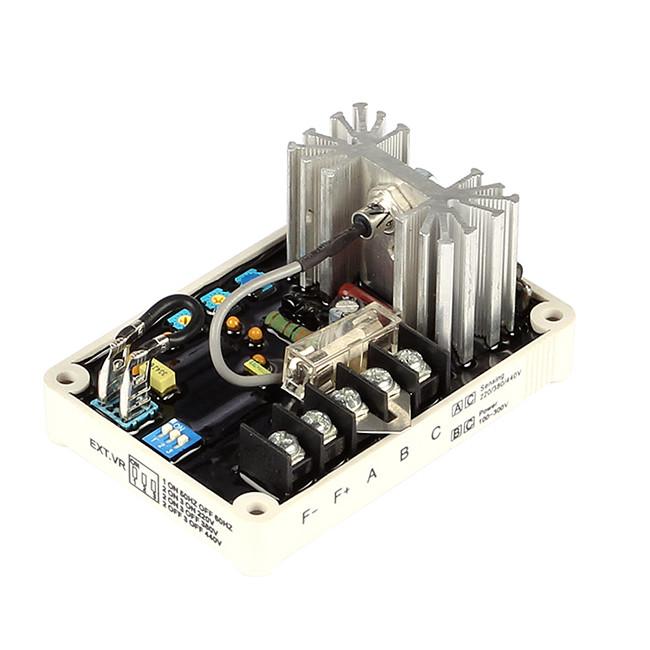

This is Automatic EA05A Voltage Regulator Controller For KUTAI AVR

  •   < ±0. 5% Regulation
  •   220/380/440 VAC Programmable Input
  •   Rugged Compact Design
  •   With Under Frequency Protection
  •   Soft Start Voltage Ramping
  •   EMI Suppression
  •   Built-in High Capacity 5 Amp Fuse



SPECIFICATION

  •  Sensing  Input
  •  Voltage:220/380/440VAC , 1 phase 2 wire
  •  Frequency:50-60Hz nominal
  •  Voltage input:100-300VAC , 1 phase 2 wireoutput
  •  Voltage:max90VDC at 240VAC input
  •  Current:continuous 5A,intermittent 7A for 10 secs
  •  Resistance:12 Ω minimum , max 100Ω
  •  Regulation:+/-0. 5% RMS with 4% engine governing
  •  Voltage build-up: residual voltage at avr terminal >5VAC
  •  External Voltage Adjustment:+/-7%  with 1k ohm 1 watt trimmer



WHAT'S IN THE PACKAGE
  • 1 x Automatic Voltage Regulator Controller EA05A
