Brand: SainSmart

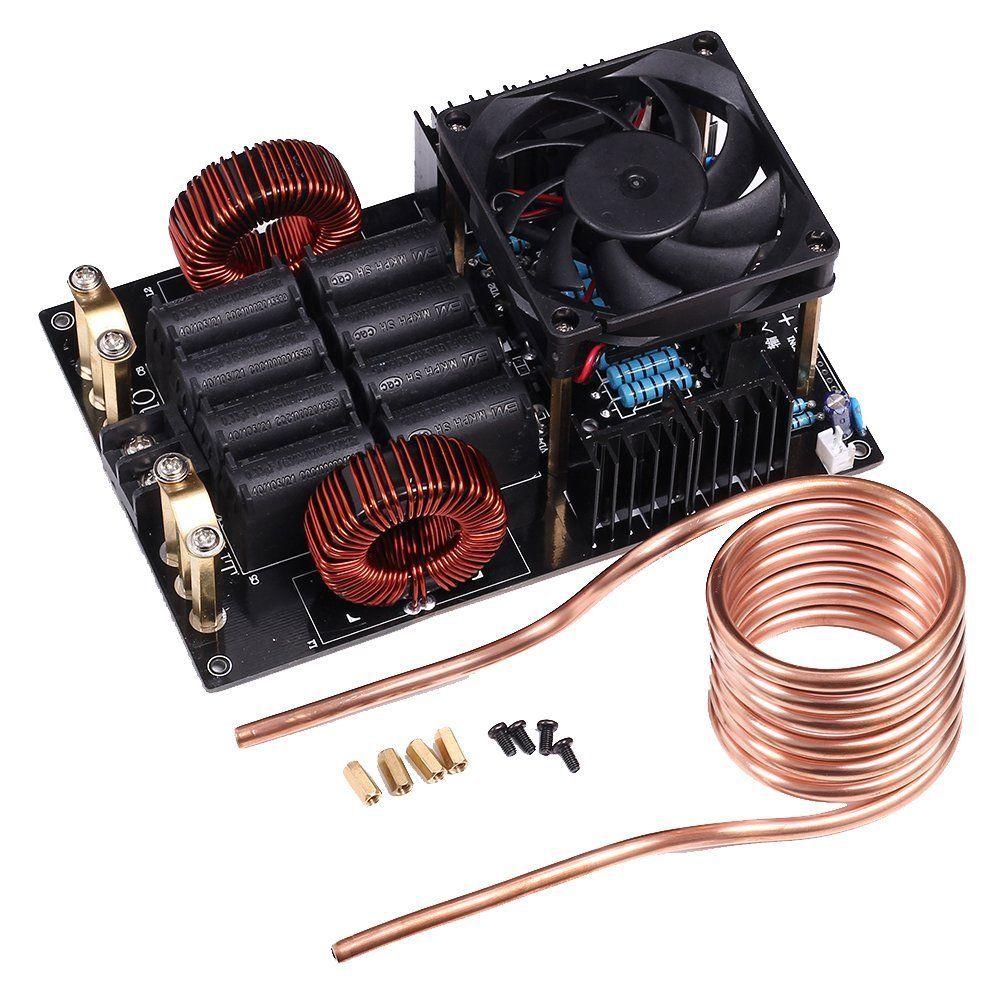

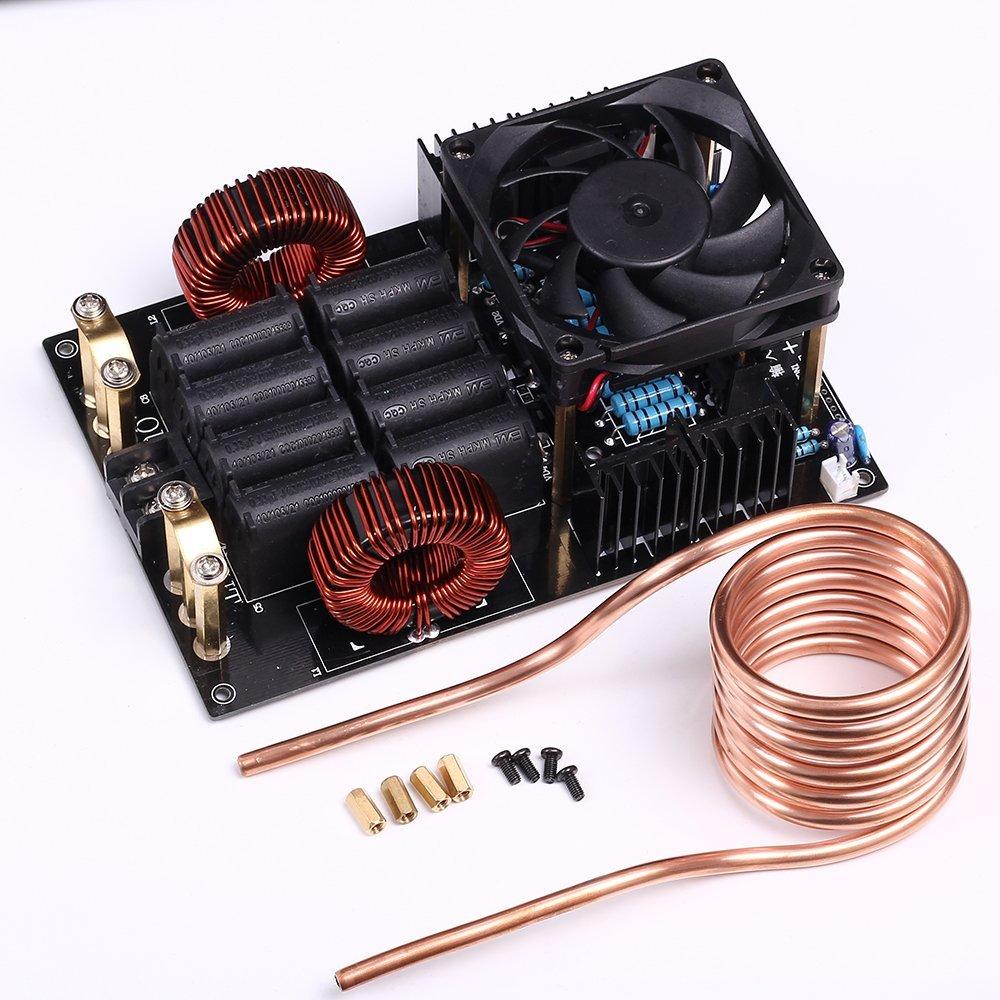

[discontinued] 1000W 20A ZVS Low Voltage Induction Heating Module with Coil

[discontinued] 1000W 20A ZVS Low Voltage Induction Heating Module with Coil

SKU:  101-60-610
€59,99
-Liquid error (snippets/price line 160): divided by 0 €59,99
Shipping calculated at checkout.
Size
  • 101-60-610
  • 101-60-611
  • 101-60-612
  • 101-60-613

A flyback drive circuit, which is used to drive the ignition coil, as did the Zero Voltage Switching, masses of fans called them "ZVS circuit". This kit is designed for indcution heating to heat or melt the metal.

  • Zero voltage switching tesla coil flyback driver board with high power output up to 1000W
  • Comes with induction coil designed for induction heating to heat or melt the metal

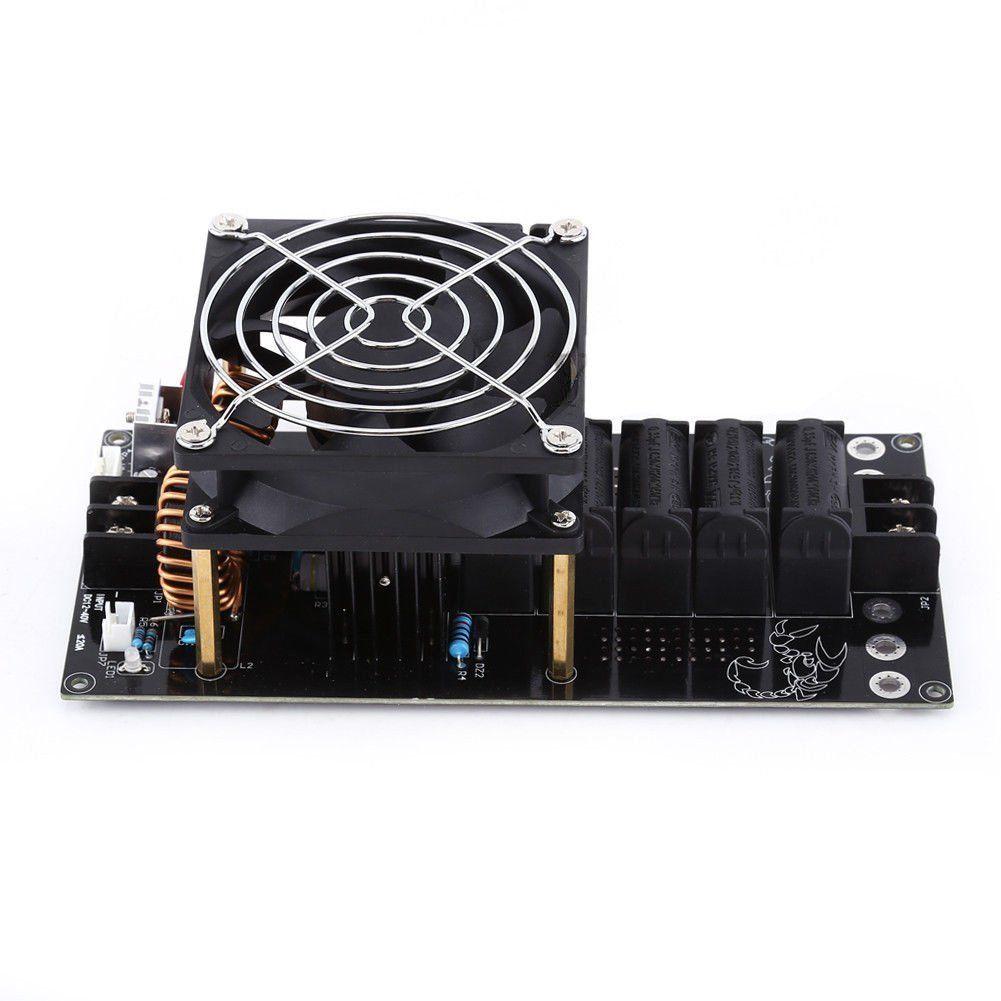

  • Built-in cooling fan
  • Only afer connect the coil and load, then you can power on the module, otherwise will damage it
  • The induction heating power supply is recommended to use more than 24V 10A switching power supply.
  • The greater the voltage, the greater the current, the greater the heating power, the faster the heating rate.
View full details
FEATURE
  • Power line design can increase the current heat radiation and makes the board smaller and more stable.
  • Anti static 42*35 large heat sink ensures a good heat dissipation effect.
  • The output end of the three pillars of parallel and 300V/25A terminals, two output modes, easy to use under different requirements.
  • The positioning hole and the positioning hole of the heat radiating fan of the board and the 9*9cm are exactly matched with the positioning hole of the board.
  • 12V power supply is directly inserted on the board.
SPECIFICATION
  • Input Voltage: 12V-36V (recommended 24V)
  • Power Requirements:
  • less than 12V â‰?A
  • more than 15V â‰?0A
  • Assembled Size: 90 x 180 x 65mm / 3.54 x 7.08 x 2.56"



WHAT'S IN THE PACKAGE

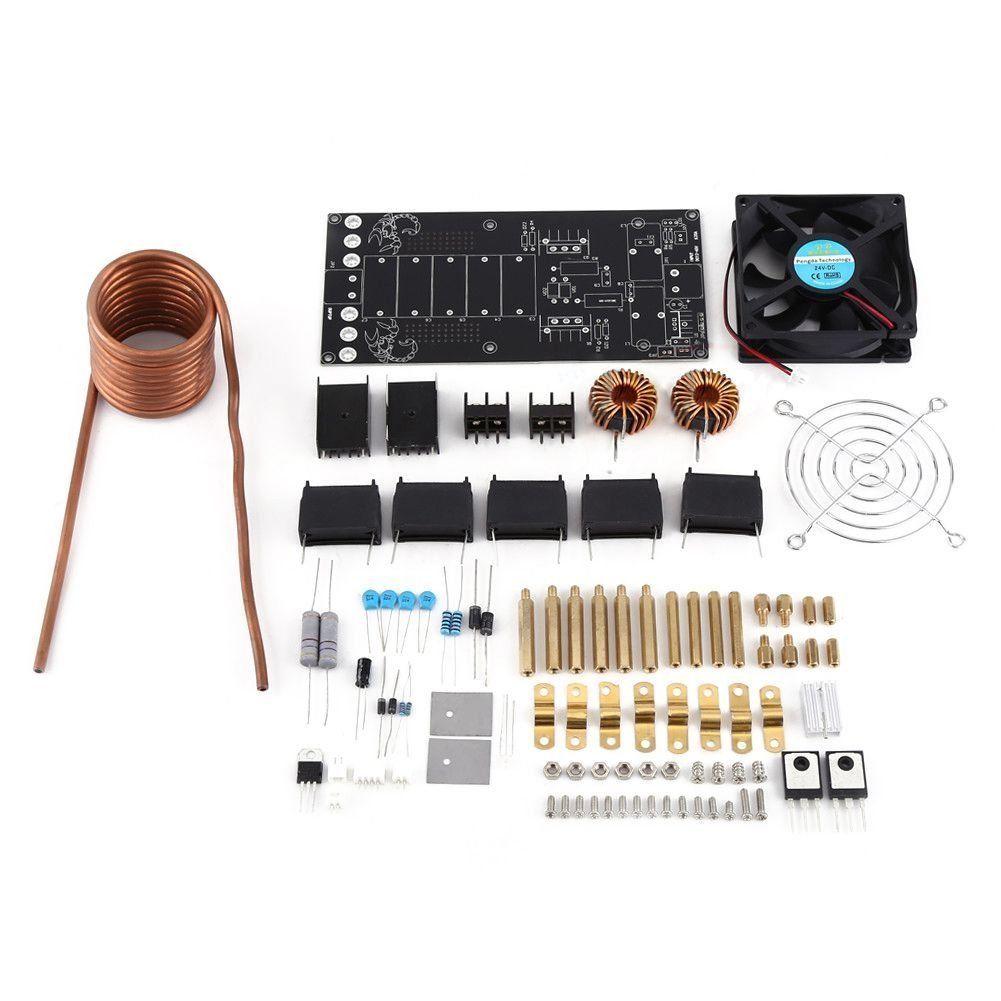

  • 1 x ZVS Flyback Driver Board
  • 1 x Brass Induction Coil
