Brand: SainSmart

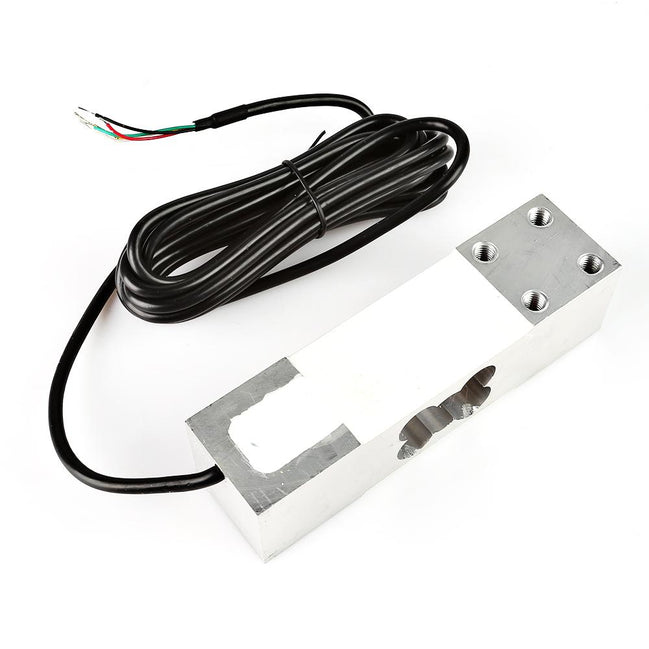

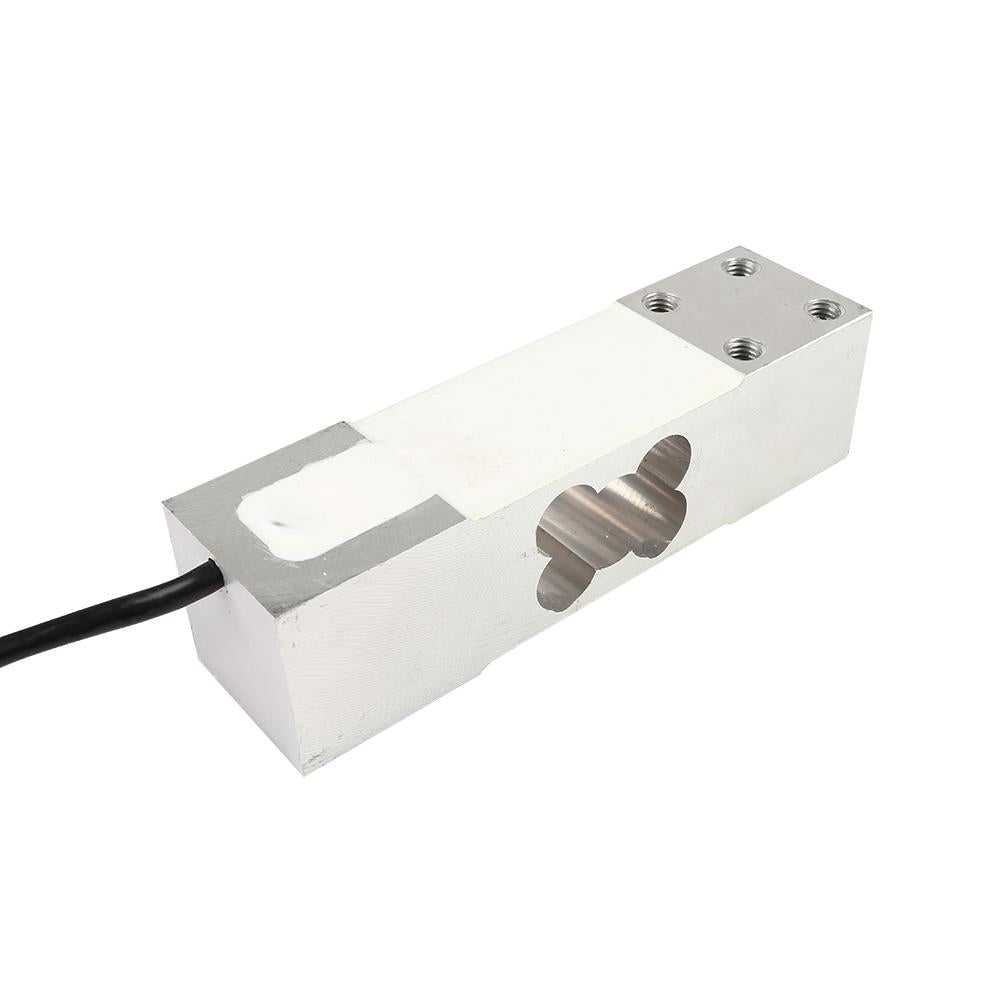

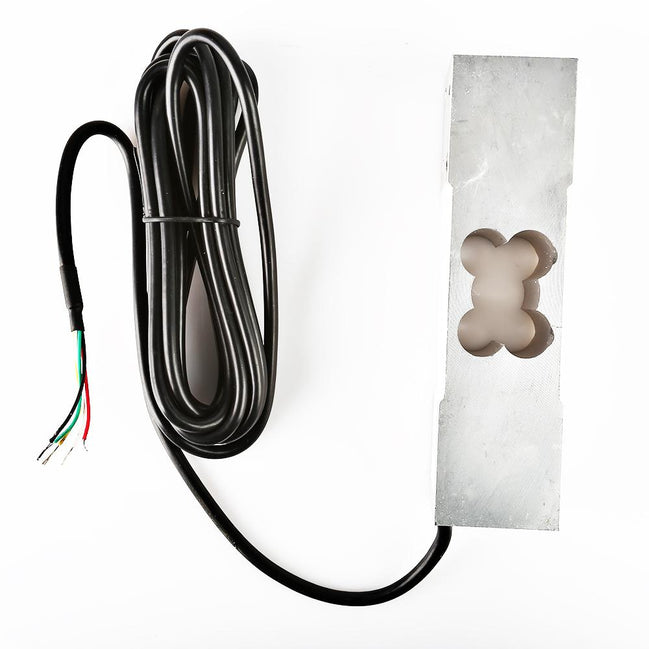

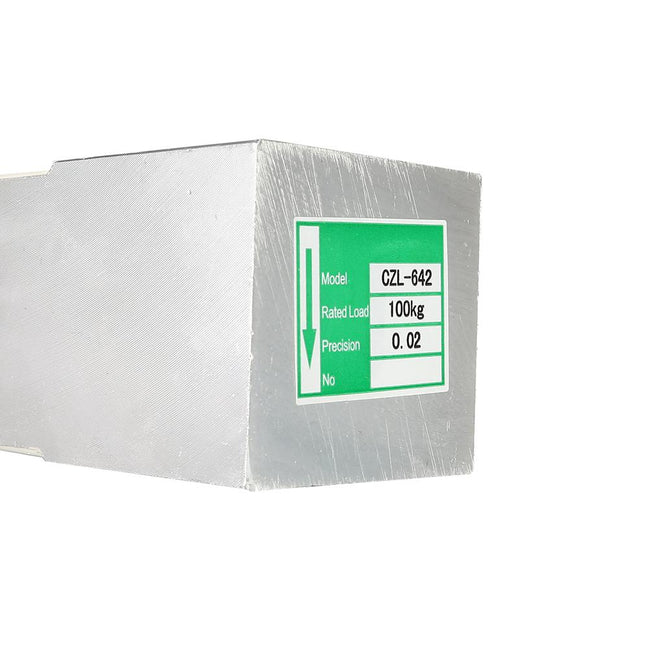

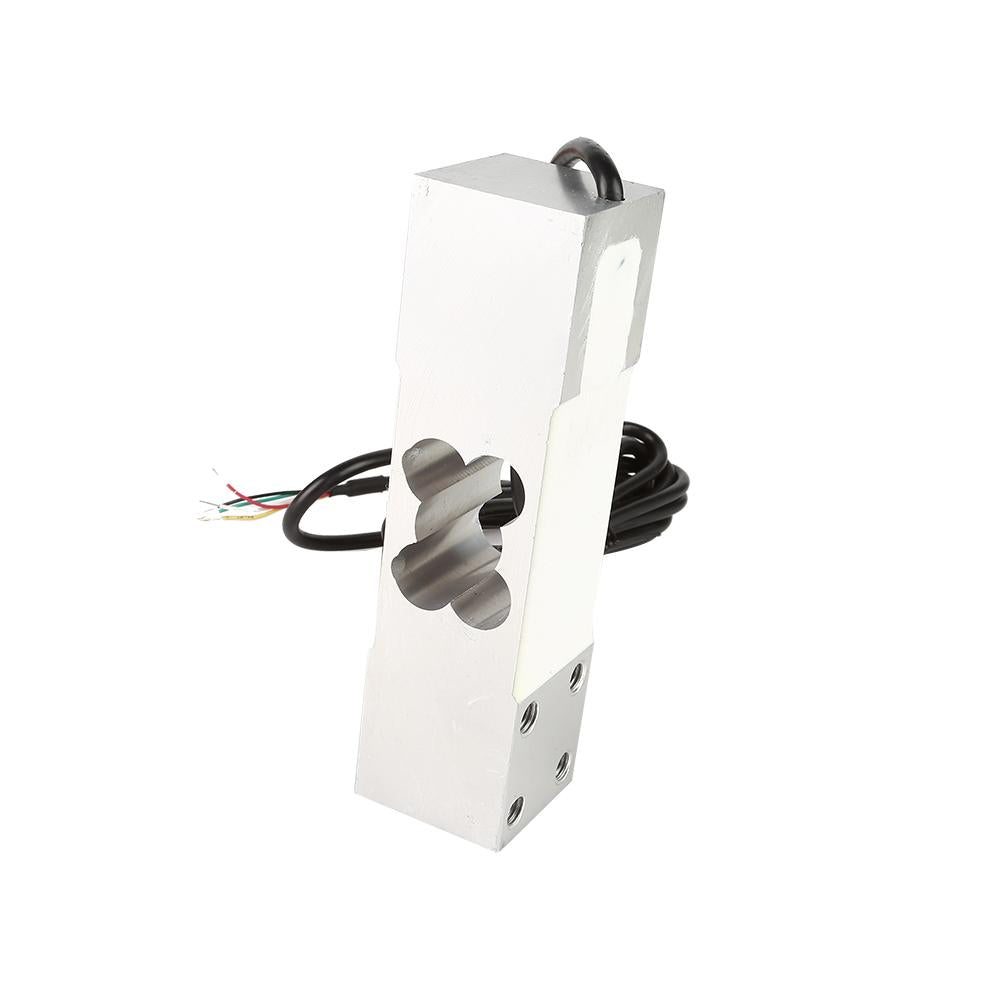

[discontinued] 100/300KG Parallel Beam Load Cell, CZL642

SKU: 101-60-513
€27,99
Ups, 0 verfügbar.
DESCRIPTION
  • Ingress protection:IP65 Not to be affected by water-sprinkle from any direction in a short period of time.
  • Surface anodized and anti-corrosion
  • Rated load 3~40 KG
  • Integral structure and easy to install or calibrate.
  • The product is suit for electronic top scale, floor scale and other weighing equipment.


SPECIFICATION
  • Precision : C2
  • Temp. effect on span(%F.S/10?): ±0.02
  • Comprehensive error(%F.S) : ±0.02
  • Temp. effect on zero(%F.S/10?) : ±0.03
  • Rated output(mv/v) : 2.0±0.1
  • Compensated temp. range(? ) : -10~+40
  • Creep(%F.S/30min) : ±0.02
  • Use temp. range(? ) : -20~+60
  • Zero balance(%F.S) : ±1.0
  • Excitation voltage(V) : 9~12(DC)
  • Input resistance(Ω) : 405±10
  • Safe overload (%F.S) : 120
  • Output resistance(Ω) : 350±3
  • Ultimate overload (%F.S) : 150
  • Insulation resistance(MΩ) : ≥5000(100VDC)
  • Defend grade : IP65

WHAT'S IN THE PACKAGE
  • 1 x Parallel Beam Load Cell CZL601
