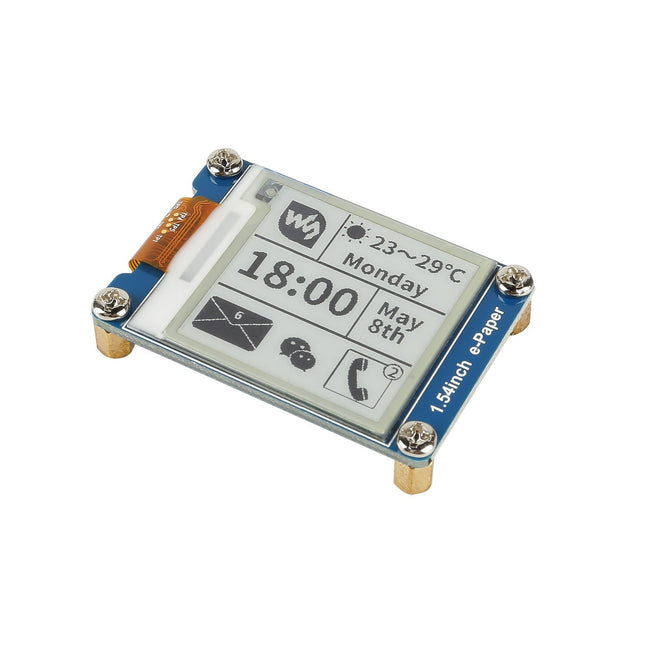

[discontinued] 1.54“/2.9" E-Ink SPI Display LCD Module for Raspberry Pi 3

[discontinued] 1.54“/2.9" E-Ink SPI Display LCD Module for Raspberry Pi 3

SKU:  101-40-230
€16,99
-Liquid error (snippets/price line 160): divided by 0 €16,99
Shipping calculated at checkout.
Size
Color
  • 101-40-230
  • 101-40-232
  • 101-40-231
  • 101-40-233

This is an E-Ink display module with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.ally open interfaces.

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
View full details
SPECIFICATION
  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI

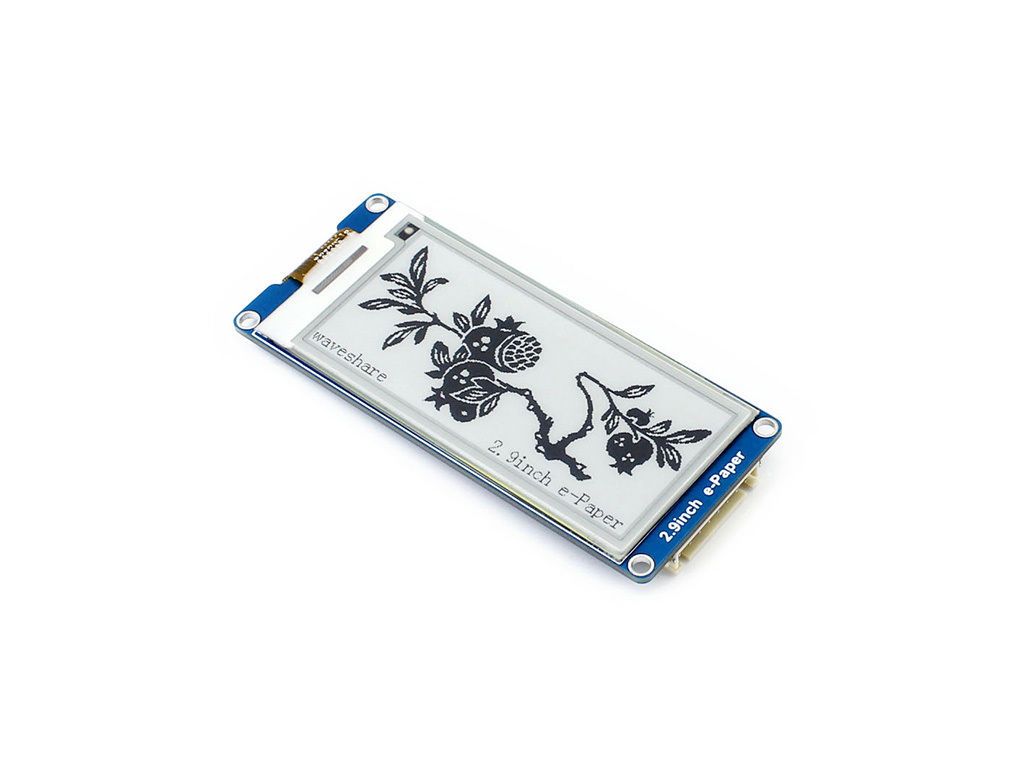

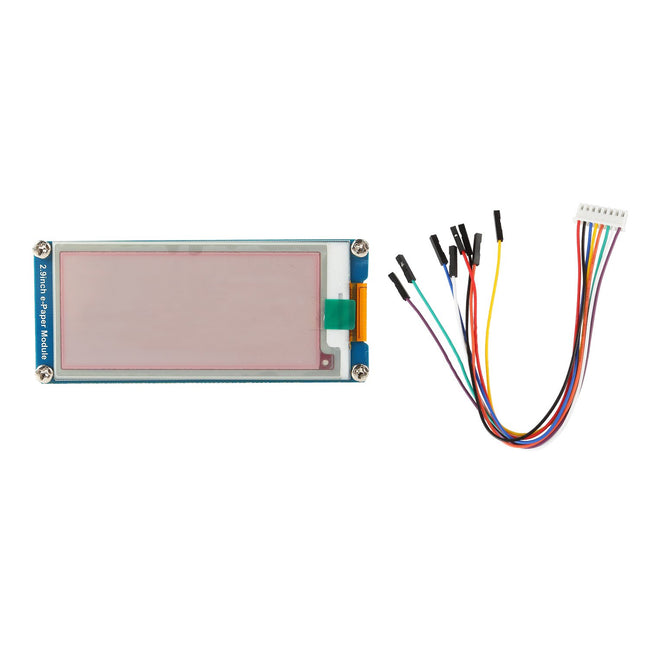

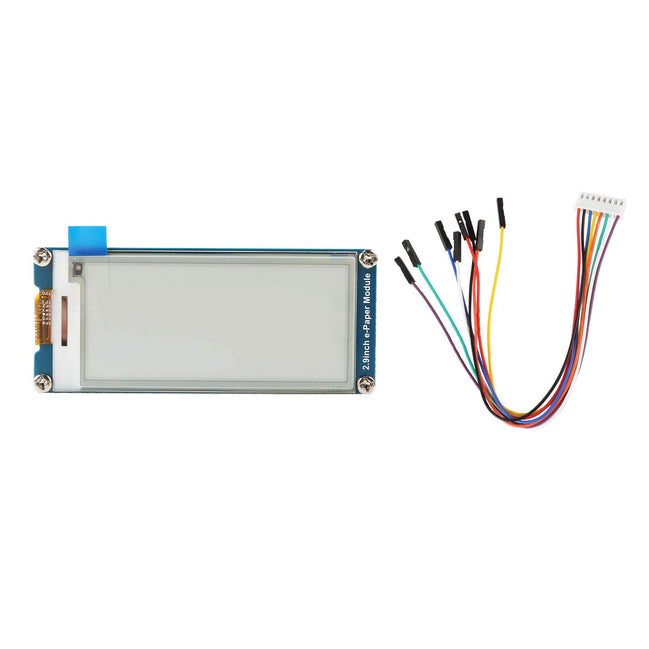

  • Display size: 1.54 inch/ 2.9 inch (depend on your choice)
  • Dot pitch: 0.138 × 0.138
  • Resolution: 1.54 inch: 200 x 200;   2.9 inch 296 x 128

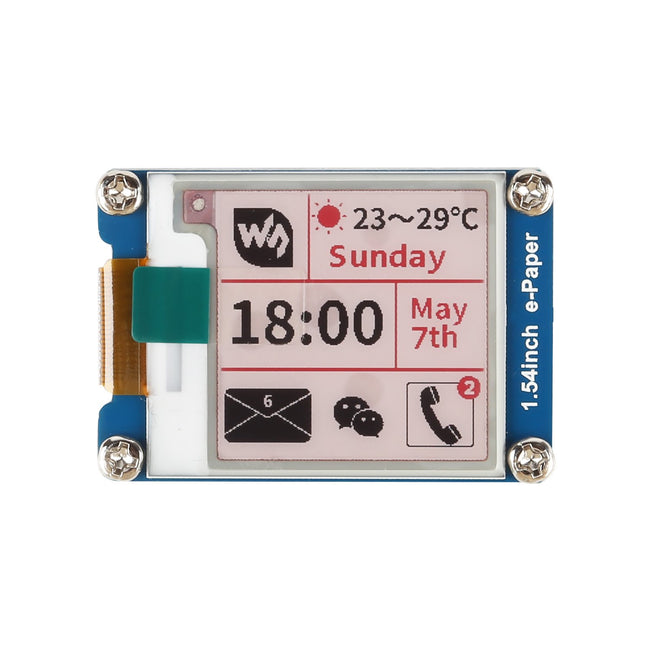

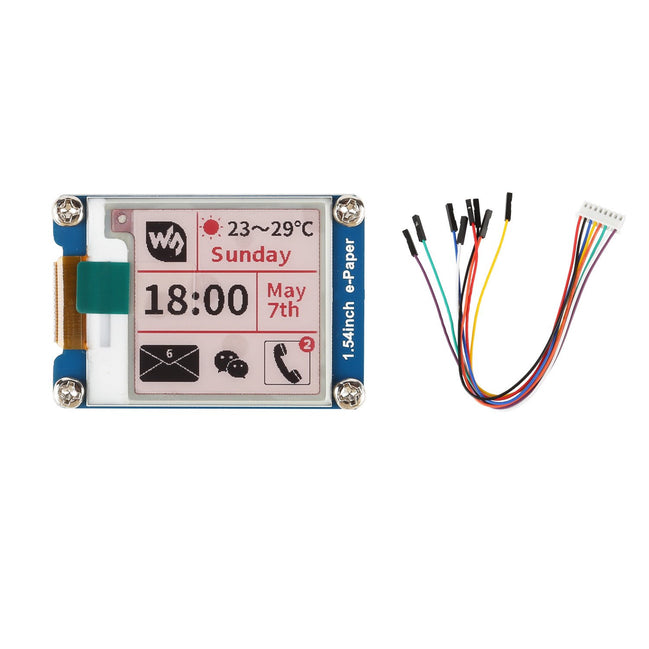

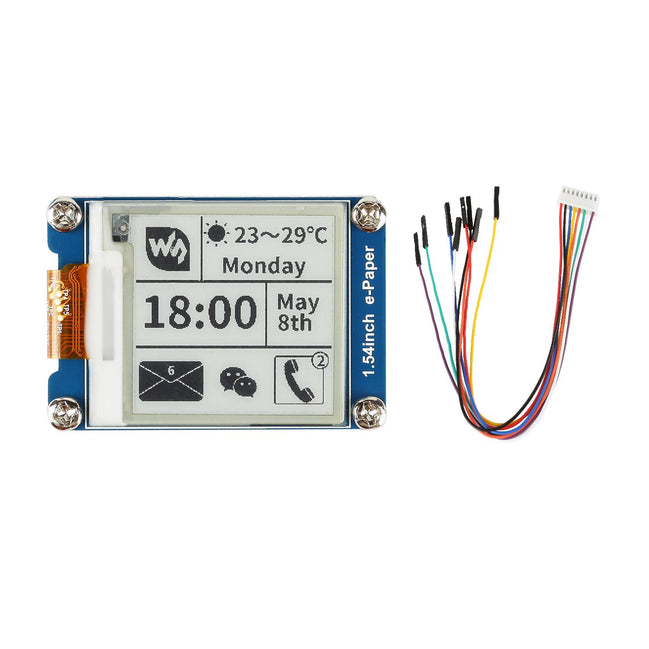

  • Display color: black, white/ black, white, red (depend on your choice)
  • Grey level: 2
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW

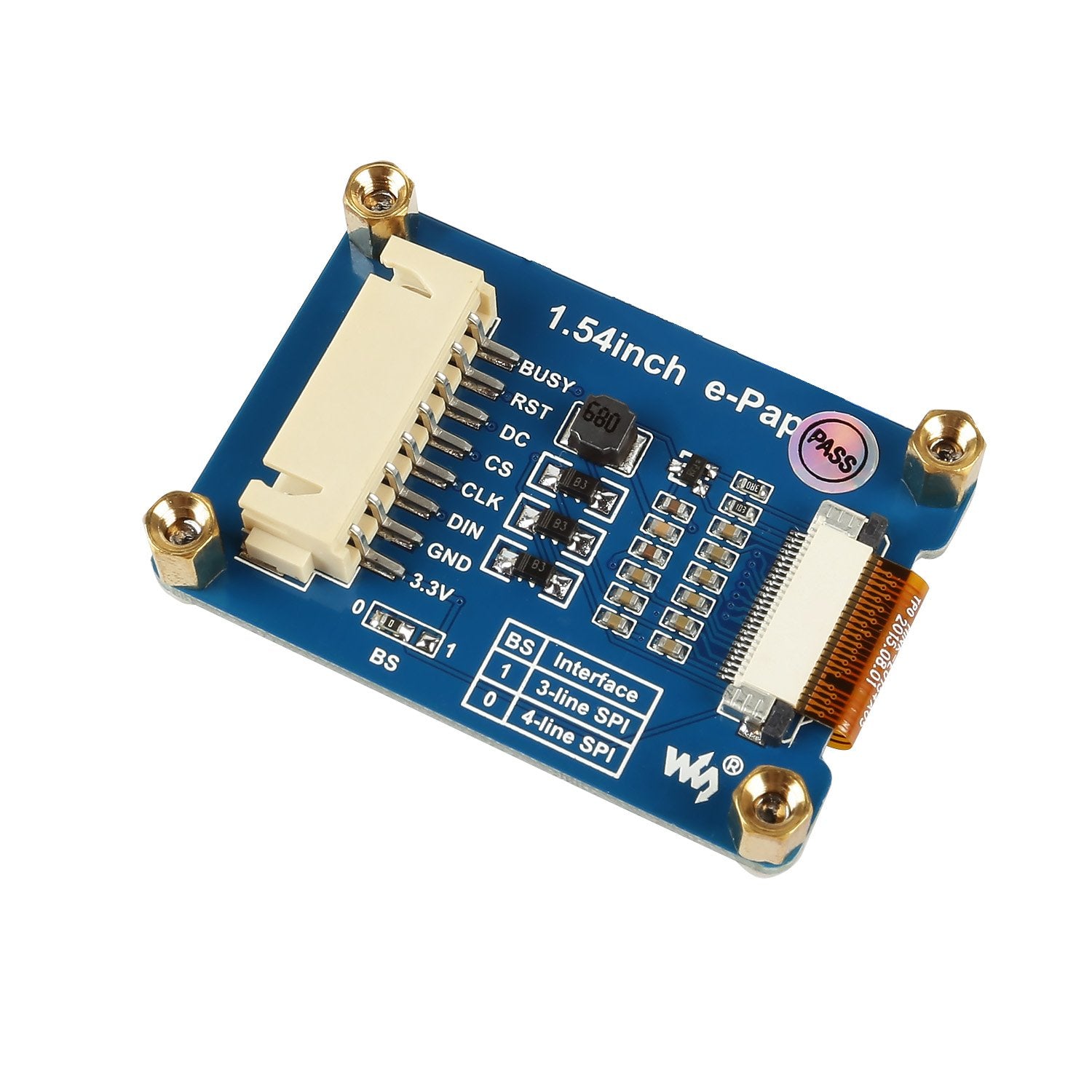

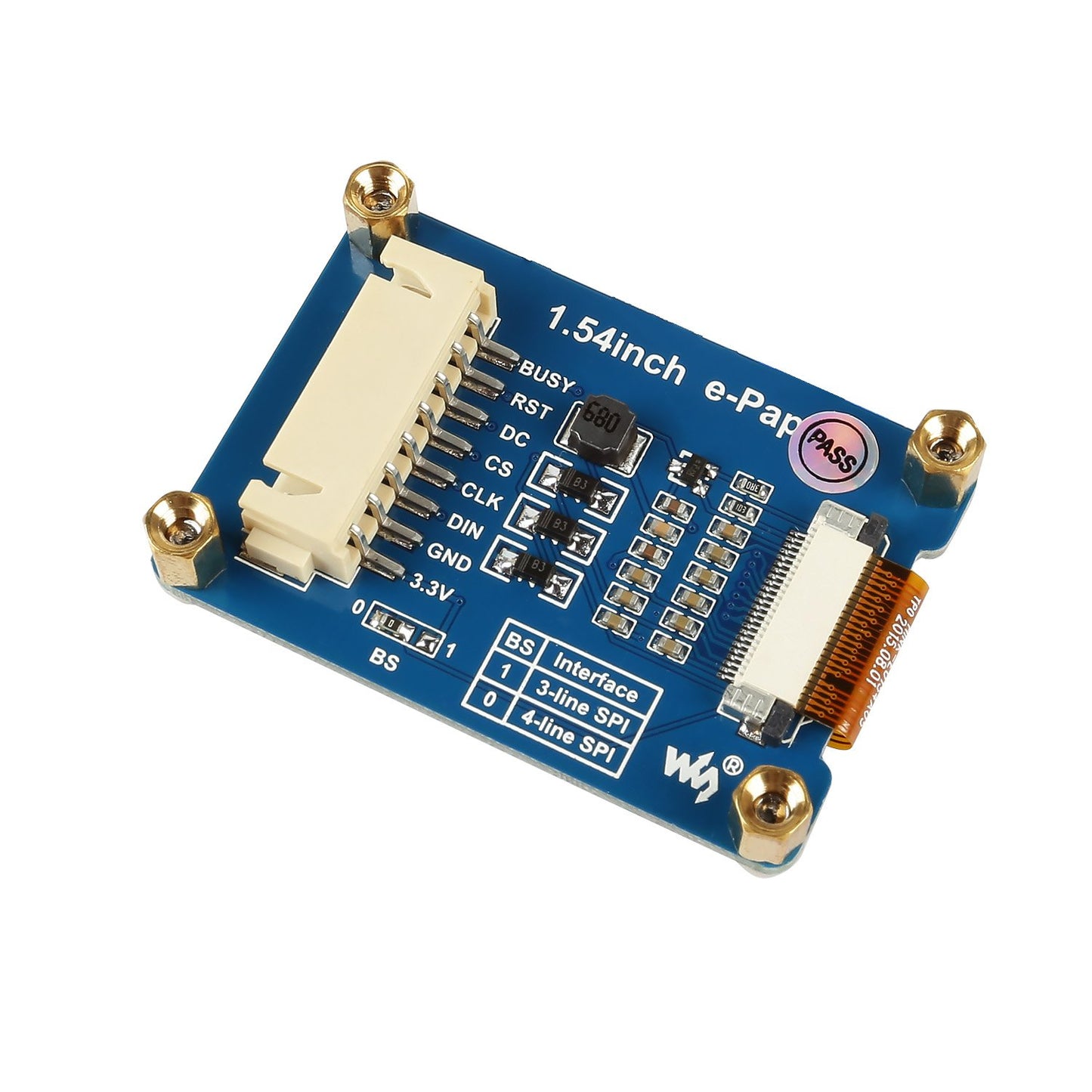

Interface:

SYMBOL   DESCRIPTION
VCC   3.3V
GND   Ground
DIN   SPI MOSI pin
CLK   SPI SCK pin
CS   SPI chip selection, low active
DC   Data/Command selection (high for data, low for command)
RST   External reset, low active
BUSY   Busy status output, low active

WHAT'S IN THE PACKAGE
  • 1x SainSmart E-Ink SPI Display LCD Module for Raspberry Pi 3
