[discontinued] Mega2560+Ethernet Shield Kit for Arduino ATMEGA8U2 W5100, [Final Sale]

SKU: 101-52-C04
€24,99 €34,99 Save €10,00
Ups, 0 verfügbar.

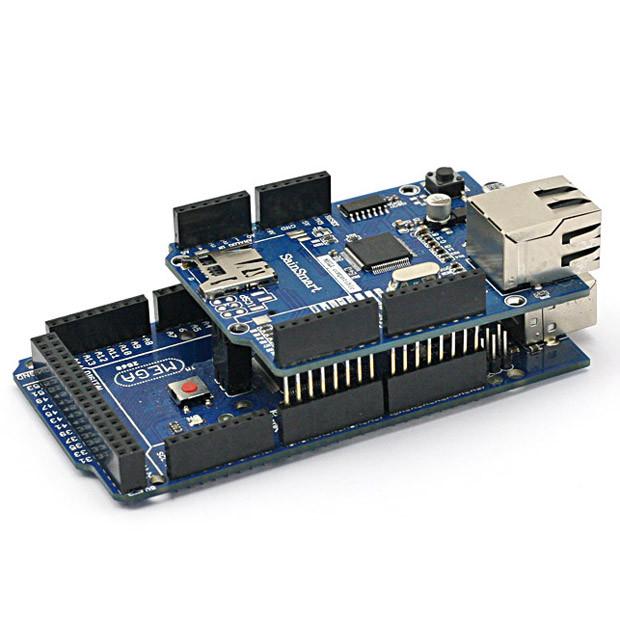

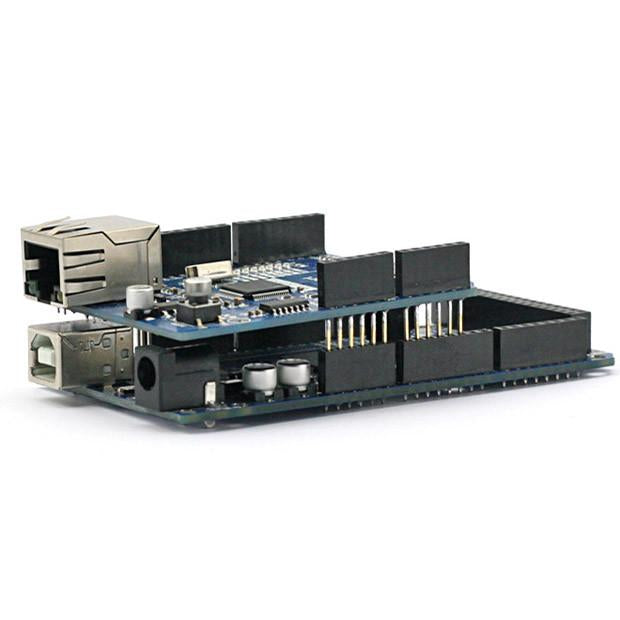

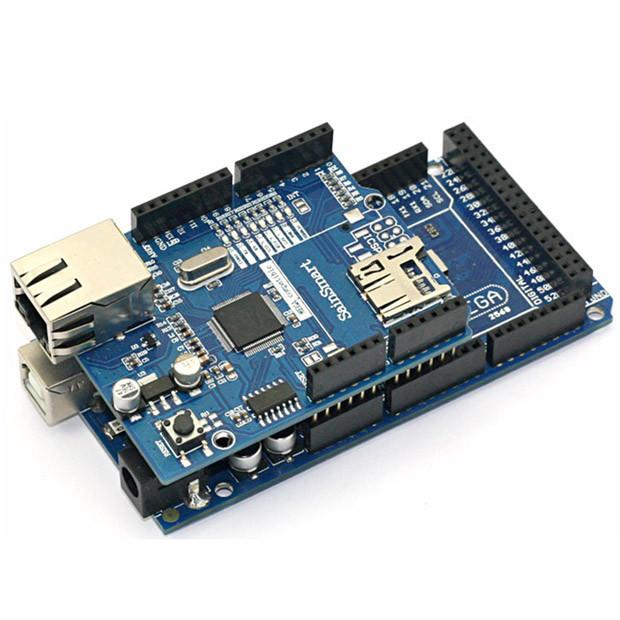

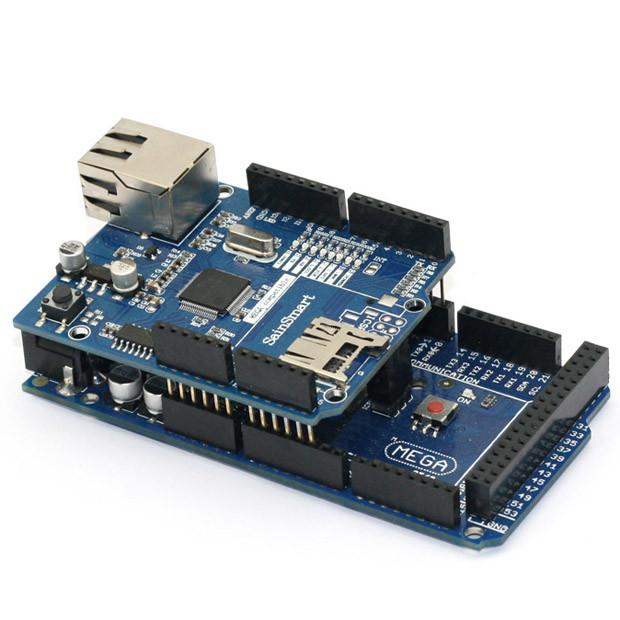

This is a Mega2560+Ethernet Shield W5100 Kit

  •  For all version of arduino Main board,   2009 , UNO, mega 1280, mega 2560
  •  With this Ethernet Shield, your Arduino board can be used to connect to internet
  •  controller: w5100
  •  works as server or client
  •  comes with efficient library and examples
  •  direct plug puzzle board, NO soldering needed.
  •  Only ships to US&EU shipping address, final sale


SainSmart Mega2560



Operating Voltage


Input Voltage (recommended)


Input Voltage (limits)


Digital I/O Pins

54 (of which 15 provide PWM output)

Analog Input Pins


DC Current per I/O Pin

40 mA

DC Current for 3.3V Pin

50 mA

Flash Memory

256 KB of which 8 KB used by bootloader


8 KB


4 KB

Clock Speed

16 MHz



SainSmart Ethernet Schield W5l00

SainSmart Ethernet W5100 allows a connection to the Internet one Arduino board. It is based on the Wiznet W5100 Ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write to the Internet verbindeten sketches by the sign.It has embedded the  transformer buffer and  has more overall electric circuit.


The new Ethernet Shield now includes a Micro SD card connector, it is MEGA-compatible and an on-board reset controller.

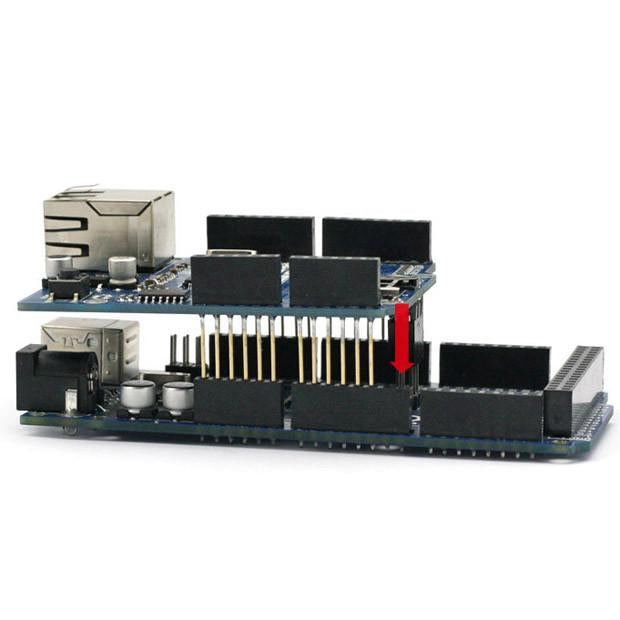

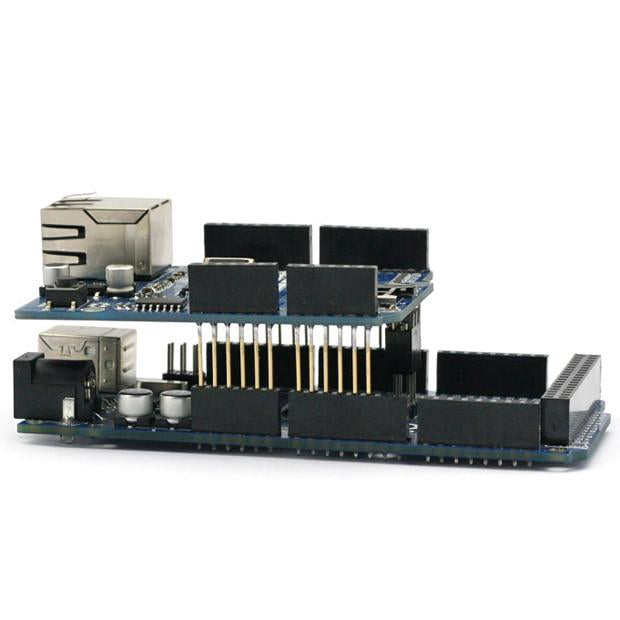

The Ethernet shield connects to an Arduino board and used a long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows a further stacking on the upper side.

Arduino uses digital pins 10, 11, 12 and 13 (SPI) to communicate with the W5100 on the Ethernet shield. These pinscan not be used for general I/O.

  1. Brand new and high quality.
  2. With this Ethernet Shield, your Arduino board can be used to connect to internet.
  3. Can be used as server or client.
  4. Directly plug puzzle board, no soldering required.
  5. Controller: w5100.
  6. This is the latest version of the Ethernet Shield.
  7. This Ethernet Shield for Arduino which is based on the Wiznet W5100 Ethernet Chip gives you an easy way to get your Arduino Online.
  8. It is directly supported by Arduino official Ethernet Library.
  9. It adds a micro-SD card slot, which can be used to store files for serving over the network.
  10. It is compatible with the Arduino Duemilanove (168 or 328), Uno as well as Mega (1280/2560) and can be accessed using the SD library.
  11. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP.
  12. It supports up to four simultaneous socket connections.
  13. Use the Ethernet library to write sketches which connect to the internet using the shield.
  14. Fits all version of arduino Main board,2009,UNO, mega 1280, mega 2560.
  15. Size: 7cm x 5.4cm x 2.4cm - 2.76inch x 2.12inch x 0.94inch.

MAC address: 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED byte mac = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };.

Note: The following just shows the normal W5100 Ethernet Shield,It has not embedded the  transformer buffer and  the electric circuit is limited than the sainsmart W5100. Of course ,it is more cheaper.


  • 1 x SainSmart Mega2560
  • 1 x SainSmart Ethernet Shield
  • 1 x USB Cable
