Marke: SainSmart

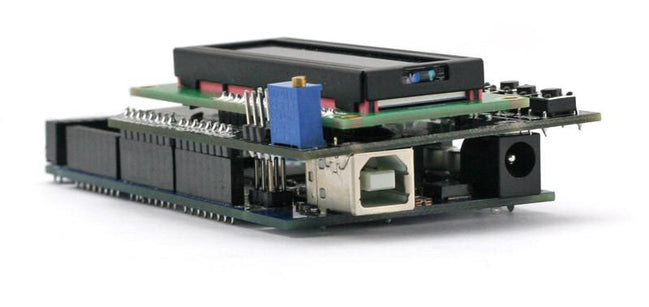

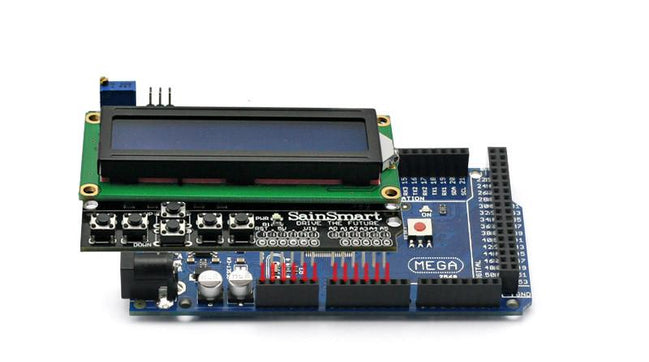

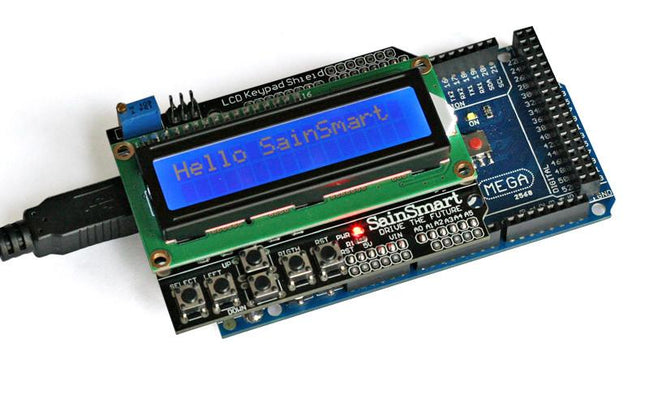

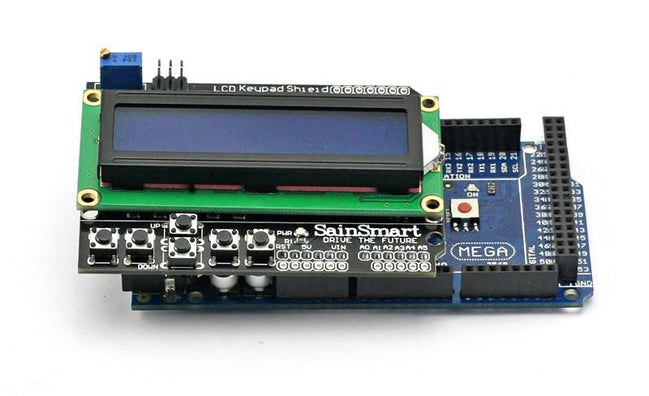

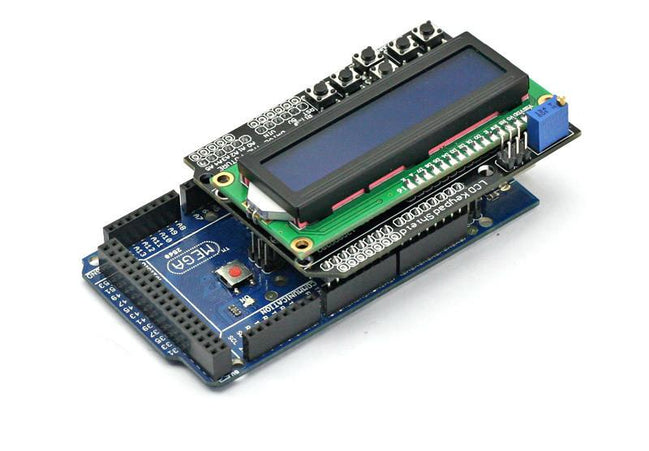

[discontinued] SainSmart Mega2560+1602 LCD Keypad Shield Kit For ATMEL ATMEGA8U2 AVR

SKU: 101-52-C00
€24,99
Ups, 0 verfügbar.

Feature:
SainSmart 1602 LCD Keypad Shield:

  •     This is a 16x2 LCD Keypad module for  Diecimila Duemilanove, UNO, MEGA1280, MEGA2560  board.
  •     Blue Backlight with white words, adjustable backlighting.
  •     4 Bit  LCD Library
  •     100% brand new and high quality



SainSmart Mega2560:

Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 54 (of which 14 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz



Package List:
1x SainSmart Mega2560
1x SainSmart 1602 LCD Keypad Shield



Buy Separately:

SainSmart Mega2560

SainSmart LCD Keypad Shield
