Brand: SainSmart

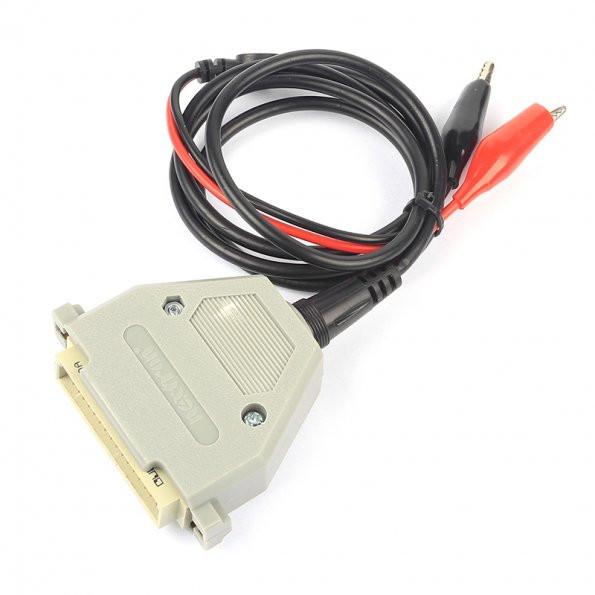

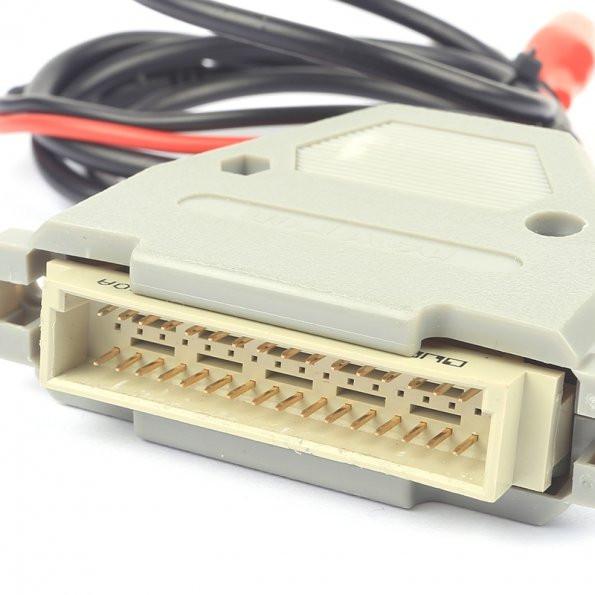

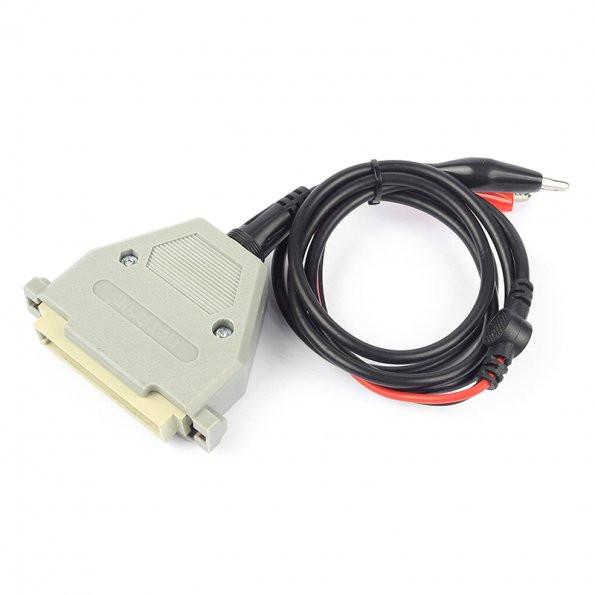

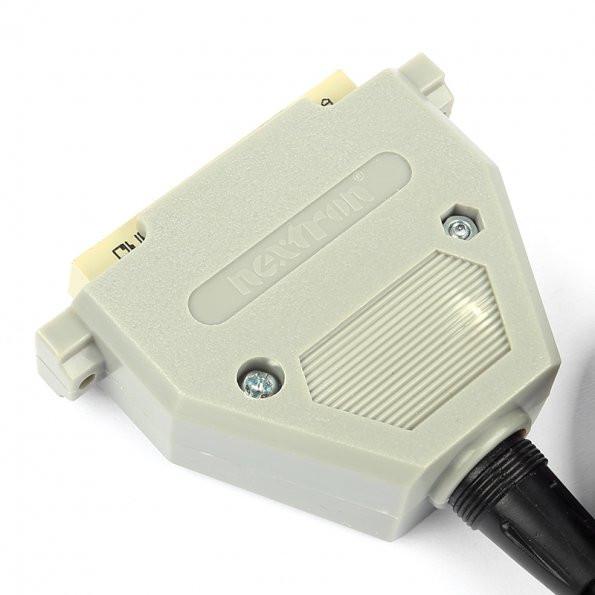

[discontinued] SainSmart Hardware Trigger Module for DDS-140

[discontinued] SainSmart Hardware Trigger Module for DDS-140

SKU:  101-10-147
Normaler Preis €16,99
-Liquid error (snippets/price line 160): divided by 0 Normaler Preis Verkaufspreis €16,99
Versand wird beim Checkout berechnet
  • 101-10-147

External Trigger module for DDS140 is edge-trigger, that detect the edge, polarity and level of the signal. When the signal change with the same direction (rising edge or falling edge) of the setting and change to the point of the trigger level, the module for DDS140 was triggered, and catch the waves.

Vollständige Details anzeigen
SPECIFICATION

    Parameter

        Description

mode

Edge-triggered (rising &falling)

threshold

0-4.5V

signal

0-5V

channel

CH1 or CH2

Module Input resistance

1M

Resolution ratio

0.06V
