[discontinued] InstaBots Remote Control Self-Balancing Robot
Marke: SainSmart

[discontinued] InstaBots Remote Control Self-Balancing Robot

SKU: 101-20-105
€89,99 €99,99 Save €10,00 FREE SHIPPING
Ups, 0 verfügbar.

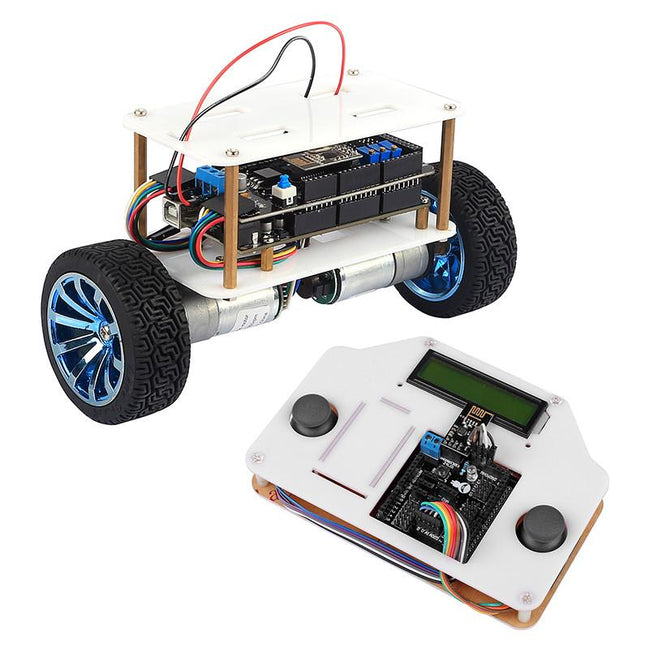

Robotics and Arduino are two peas in a pod, but for many of us, they seem like difficult concepts to grasp. The truth of the matter is that you can make a robot or Arduino project as sophisticated as you can imagine, but these projects should also be fun and come from a simple start. This is the thinking behind the SainSmart InstaBots product line.

With SainSmart InstaBots Upright Rover Kit we aimed to create something that beginners and experts could both enjoy. SainSmart InstaBots Upright Rover Kit provides all the parts and easy-to-follow instructions, you provide the final result.

  • Balances, moves, run with two wheels.
  • Controlled & moved by the remote controller.
  • One joystick is used to control the robot, the other one is customized.
ABOUT INSTABOTS

InstaBots are a series of experimental projects launched in Aug, 2014. Aiming to provide some of the most interesting open hardware kits with all the necessary components, we hope Makers of all skill levels can enjoy a sense of accomplishment and fun from the moment they open the box.

OVERVIEW

The beauty of SainSmart InstaBots Upright Rover Kit is that it is totally customizable; it starts from our design but can become something totally your own. Add sensors, cameras or any other parts and pieces you can think of. Designed by our top product engineers and approved by beginner enthusiasts, SainSmart InstaBots Upright Rover Kit leaves no room for excuses.





With the LCD on the controller, now you can see the gesture and the PID values of the robot without the USB cable by pressing the button on the joystick_1 to change what values you want to see. What’s more, the transmitter has 8 channels so you can edit the code yourself to transmit everything you want.

New codes for the robot make it more safety and stable. If it falls down when adjusting the PID values, you don’t need to press reset button but just put it back to the right position and it will restart itself.

SPECIFICATION

Controller

  • Size: 165*116*26(mm)
  • Weight: 216g
  • Voltage: 9V
  • Frequency: 2.4GHz
  • Distance: 100m

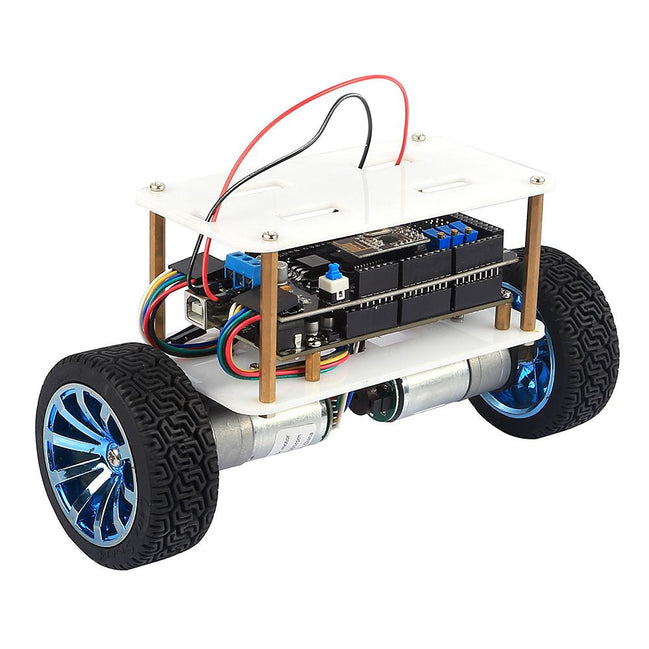

Robot

  • Size: 200*65*180(mm)
  • Weight: 526g
  • No-load Speed: 400rpm
  • Wheel diameter: 65mm
  • Voltage range: 10v ~ 13v



WHAT'S IN THE PACKAGE
  • 1x  Uno R3

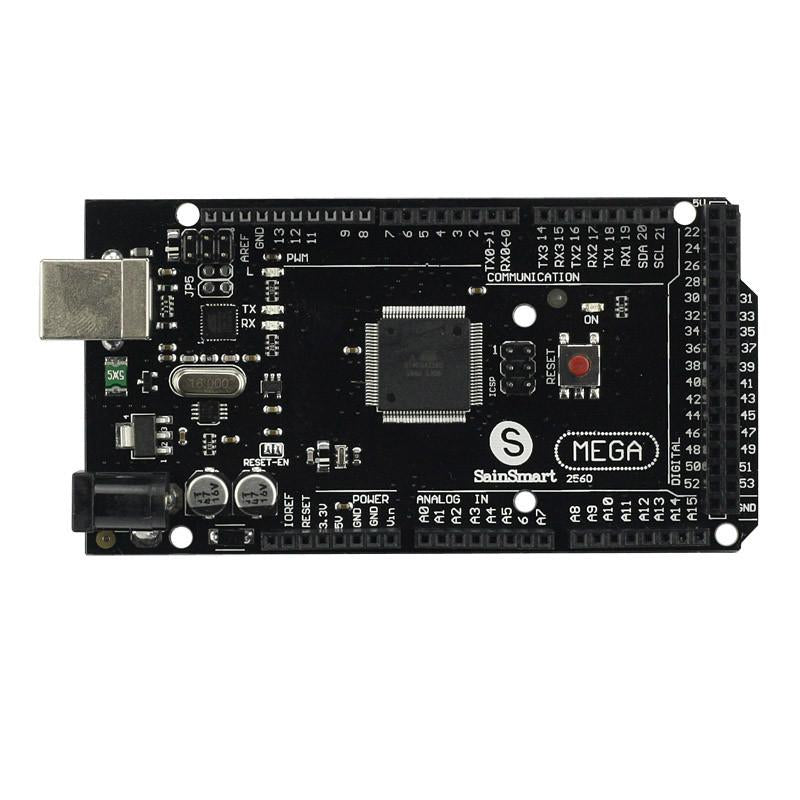

  • 1x Mega 2560 R3

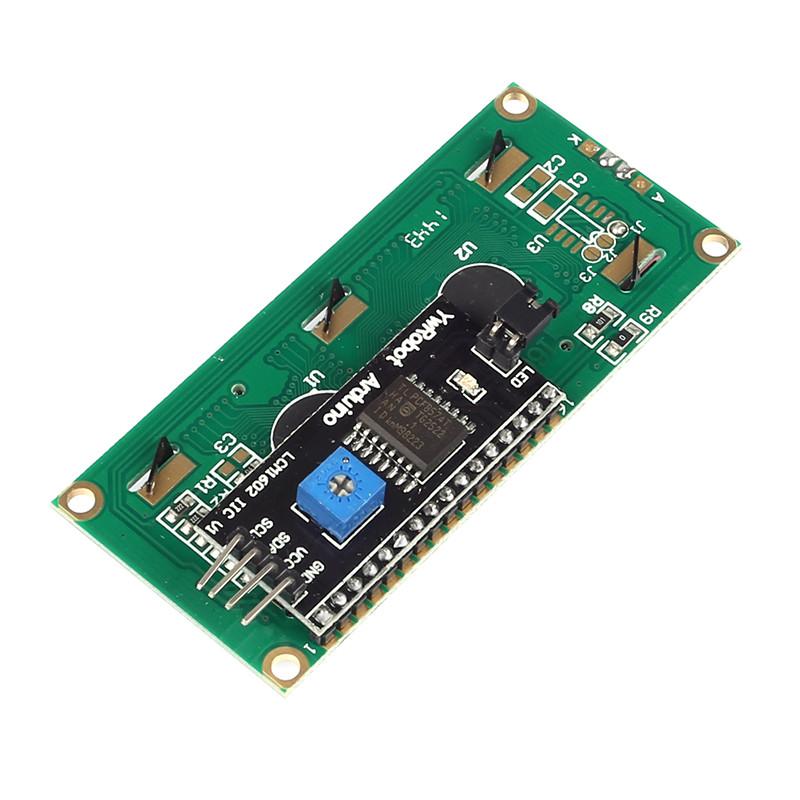

  • 1x IIC/I2C 1602 LCD
  • 2x USB Cable

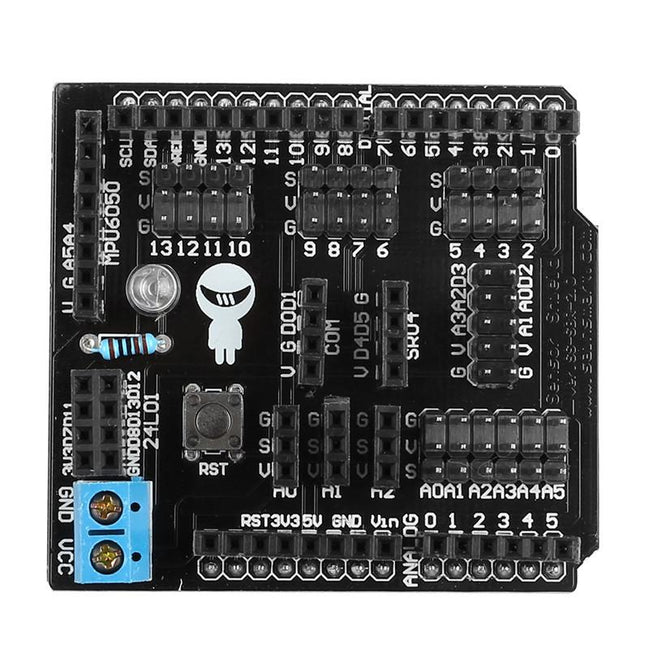

  • 2x Sensor Shield
  • 2x 24L01
  • 2x Joystick
  • 2x Gear Motor

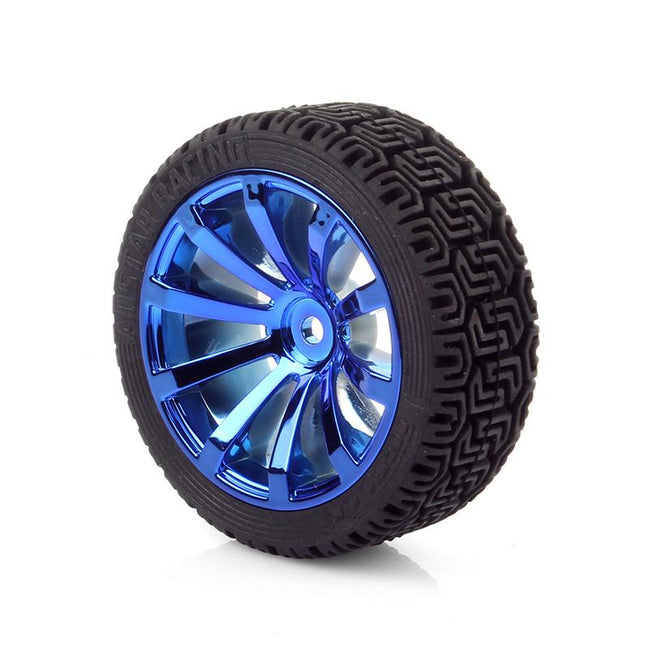

  • 2x Wheel
  • 2x Motor bracket
  • 2x Coupling
  • 1x 9V Battery Snap
  • 1x MPU6050
  • 1x Balancing Robot Platform
  • 1x Wireless Remote Controller Platform
  • 1x Box & wires & connectors
  • Batteries are not included

Note: Due to shipping regulations, this kit doesn't include the battery for the robot. We recommend you to choose a 9v Li-Po battery from local suppliers.
