[discontinued] CNC 2-Phase Stepper Motor Driver, ST-DM542

[discontinued] CNC 2-Phase Stepper Motor Driver, ST-DM542

SKU:  101-60-268
€29,99
-Liquid error (snippets/price line 160): divided by 0 €29,99
Versand wird beim Checkout berechnet
  • 101-60-268

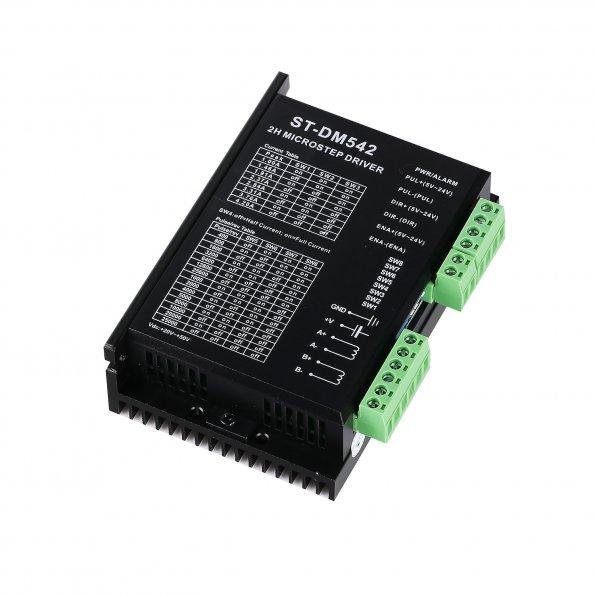

ST-DM542 is a cost effective, high performance CNC two phase stepper motor driver. Using the bipolar constant current PWM current control mode that make the motor runs smoothly and quietly. The maximum output of 4.2A drive current is suitable for NEMA17 and NEMA23 stepper motor which height is less than 112mm.

  • DC power input type: 20V ~50V
  • Output current: 1 ~4.2A
  • Micro-step: 2、4、8、16、32、64、128、5、10、20、25、40、50、100、125
  • Protect form: over-voltage, over-current protection
  • The maximum pulse rate is 200KHZ
  • Dimensions: 118mm*88mm*33mm 4.6”*3.5”*1.3”
  • Weight: 268g 0.59lb
  • Working environment: temperature -15℃~50℃/5℉~122℉, Humidity<90%
Vollständige Details anzeigen

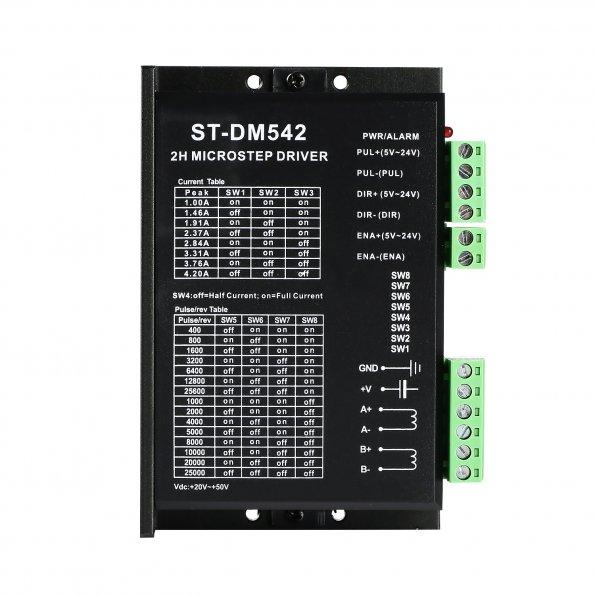

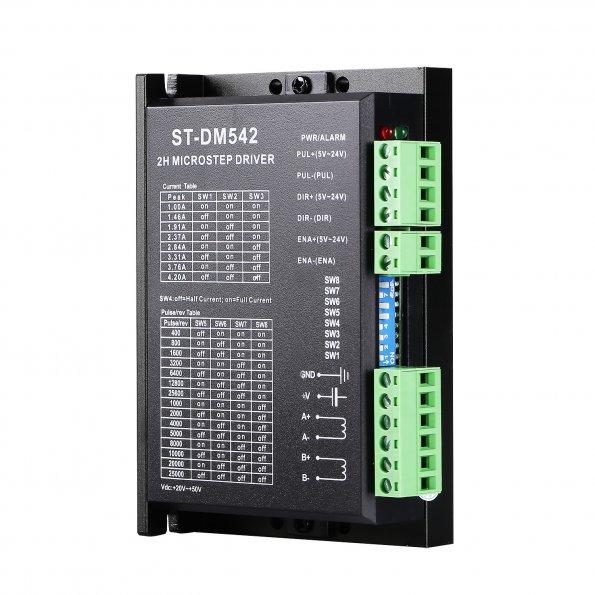

SPECIFICATION:
  •  +V: DC Power positive terminal
  • GND: DC Power negative terminal
  • A+、A-: Stepping motor one winding
  • B+、B-: Stepping motor other winding
  • PUL+（+5V-24V）、PUL -: Stepping pulse input (Rising edge effective, Pulse width >1.2 us)
  • DIR +（+5V-24V）、DIR-: Direction signal input, high level forward, low level reverse, the direction of signal should be at least 5 us ahead of the pulse signal.
  • ENA+（+5V-24V）、ENA-: motor free
  • Green LED: Power LED
  • Red LED : Fault indication, over current、 overvoltage 、or other failures. The red LED light is bright, after the failure is eliminated, Power off for a while and then power, the red LED lamp is out
WHAT'S IN THE PACKAGE

ST-DM542 X 1

Paper specification
