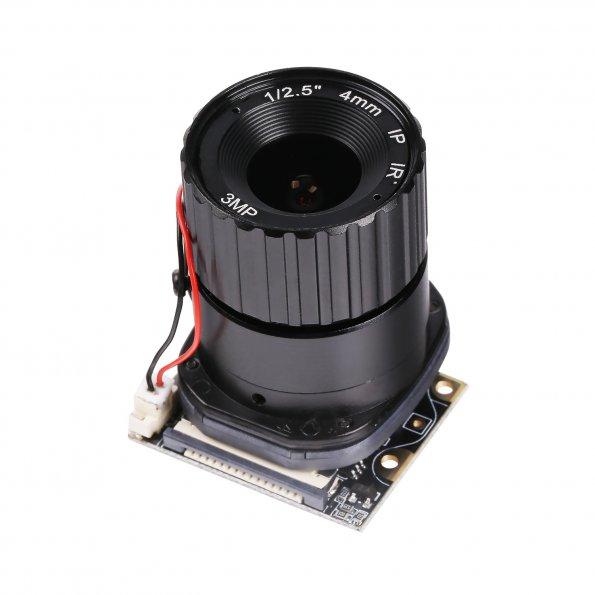

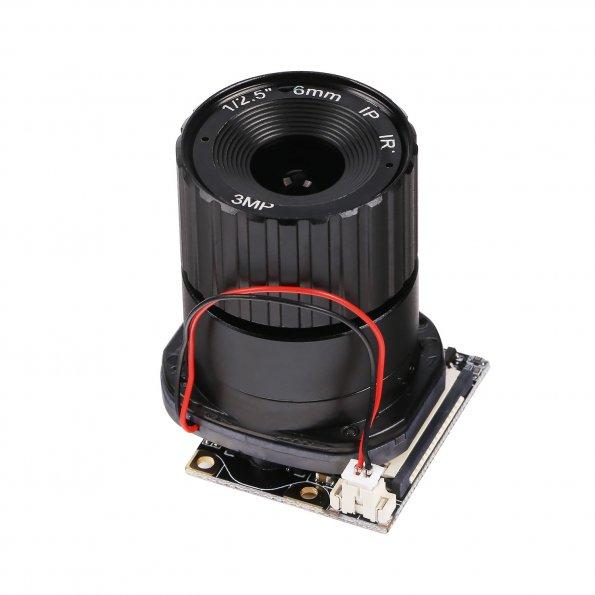

[discontinued] 5MP IR-CUT Infrared Light Surveillance Camera Module for Raspberry Pi

SKU: 101-40-241
Ups, 0 verfügbar.
  • SainSmart Raspberry Pi Camera, supports all revisions of the Raspberry Pi.
  • Embedded removable IR-CUT filter, eliminating color distortion in the daylight.

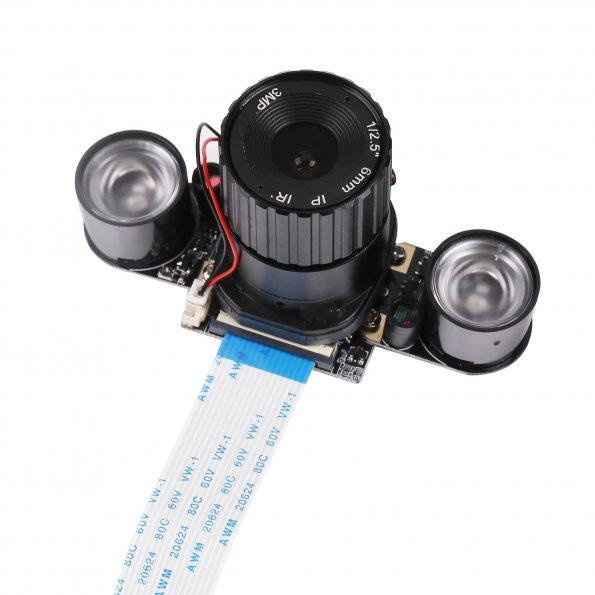

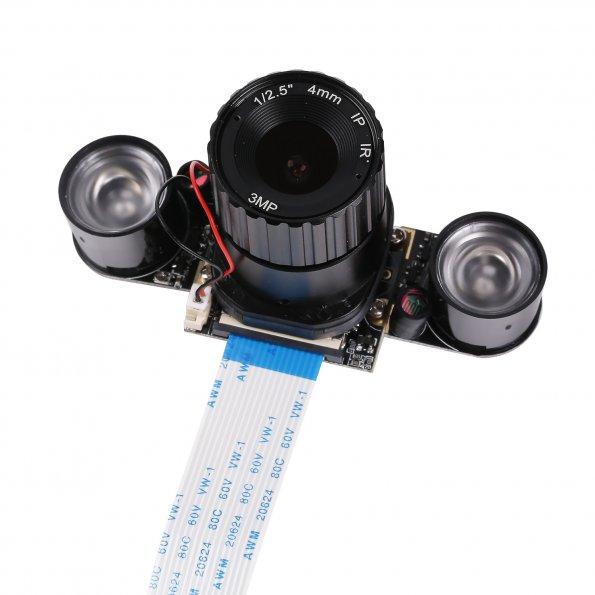

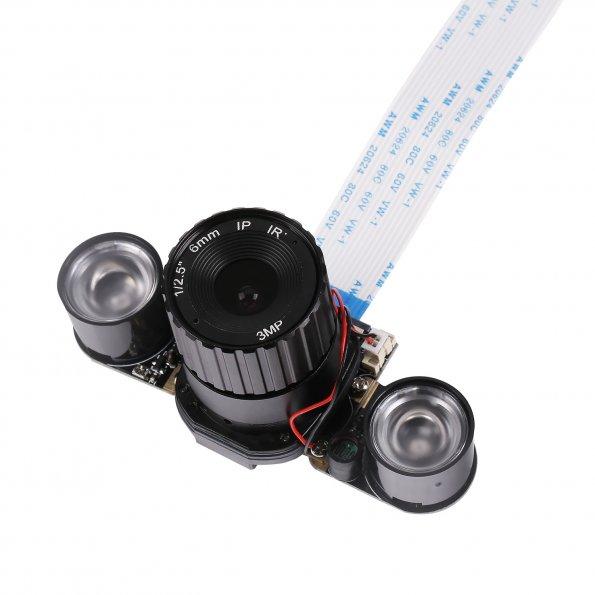

  • Comes with infrared LED, supports night vision
  • 5 megapixel OV5647 sensor
Effect Of IR-CUT Filter In Day/Night

  • CCD size : 1/4inch
  • Aperture (F) : 1.2

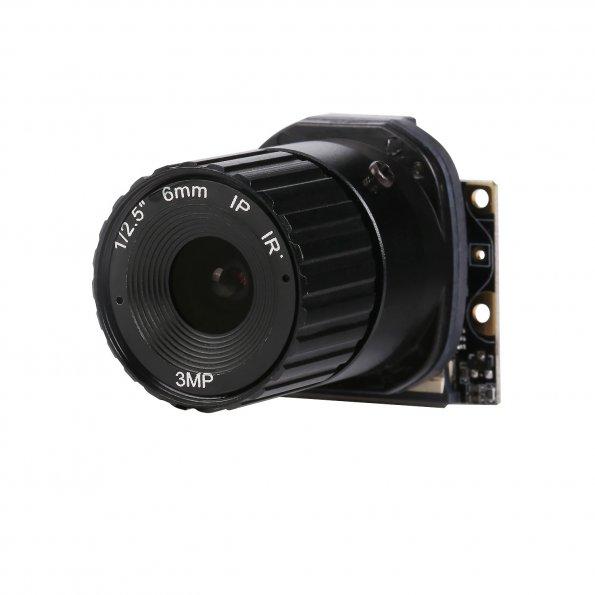

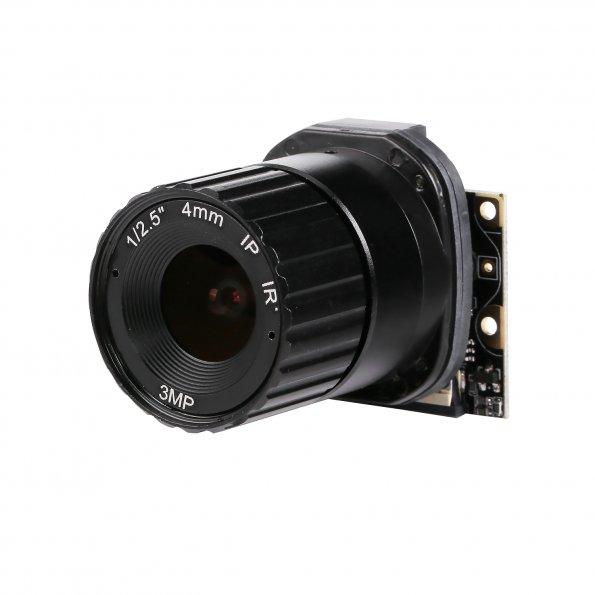

  • Focal Length : 4mm (or 6mm)
  • Field of View : 70 degree for 4mm, 65 degree for 6mm
  • Sensor best resolution : 1080p
  • Dimension: 35mm x 35mm x 45mm  1.38" x 1.38" x 1.78"

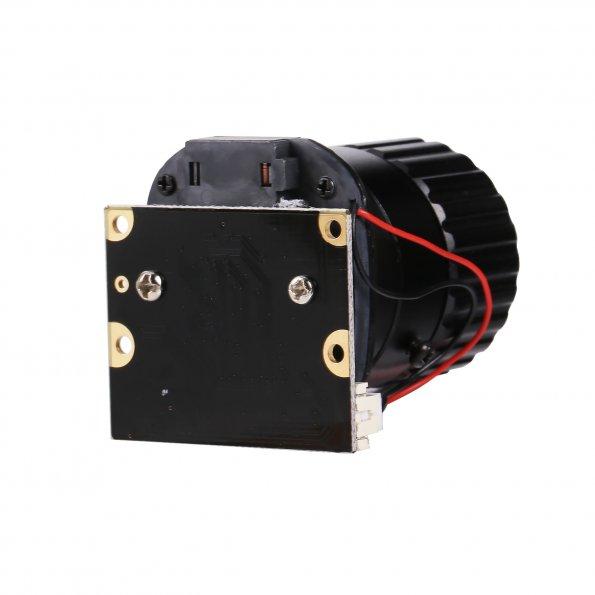

4 screw holes

  • Used for attachment
  • Provides 3.3V power output
  • Supports connecting infrared LED and/or fill flash LED

Note: to use the camera with Raspberry Zero v1.3, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

  • 1 x SainSmart IR-CUT Camera Module for Raspberry Pi
  • 1 x 15-pin FFC (opposite sides contact)
  • 2 x Infrared LED Board
