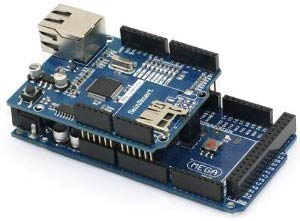

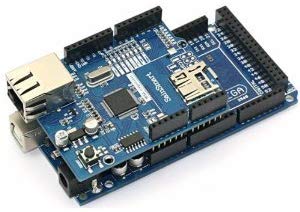

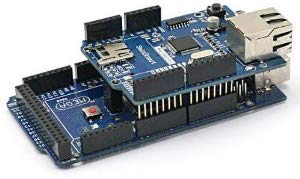

Sainsmart MEGA ATmega2560 + Ethernet ShieldMarke: SainSmart Deutschland SKU: 20-011-C10
The SainSmart MEGA 2560 Board for Arduino: This is
a microcontroller board based on the ATmega2560. It has 54 digital input/output
pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs
(hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power
jack, an ICSP header, and a reset button. It contains everything needed to
support the microcontroller; simply connect it to a computer with a USB cable or
power it with a AC-to-DC adapter or battery to get started.
The SainSmart Ethernet Shield for Arduino: This allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield.
The new Ethernet shield now includes a micro SD card connector, it is MEGA compatible and an on-board reset controller.

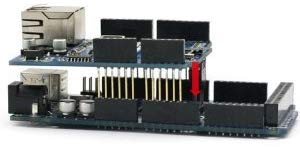

The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.
Arduino uses digital pins 10, 11, 12, and 13 (SPI) to communicate with the W5100 on the ethernet shield. These pins cannot be used for general i/o.
1 SainSmart Mega 2560
1 SainSmart Ethernet Shield
